PharmEquip

Bio-Logic Solutions has a long association with PharmEquip, supplying products and equipment to New Zealand critical and high-purity processes.

Heat Exchangers

Miniature Shell & Tube and Tube-in-tube Heat Exchangers

Sanitary shell & tube heat exchangers

Single tubesheet or double tubesheet versions to reduce cross contamination risk.
Heat transfer rates up to 1465 kW
Liquid flowrates up to 946 Litres per minute
Pressures up to 1,500 psi (104 bar)
Material options 316L SS, 1.4435, Hastelloy, Inconel and other alloys with certification.
Surface finish options 0.5µm Ra and 0.38µm Ra and electropolishing.
ASME BPE compliant.
Nickel braized construction (no welds)
Full drainablity on tube side.

Product Specifications

Sanitary tube-in-tube heat exchangers

Suited to high pressure, high temperature and low flow applications.
Resistant to thermal stress.
Heat transfer rates up to 29 kW.
Liquid flowrates up to 38 LPM
Pressures up to 4,500 psi (310 bar)
Material options 316L SS, Hastelloy, Inconel, Titanium and other alloys with certification.
Surface finish options 0.5µm Ra and 0.38µm Ra and electropolishing.
Fully welded construction.
Sanitary ASME BPE fittings.
Full drainablity on product side.

Product Specifications

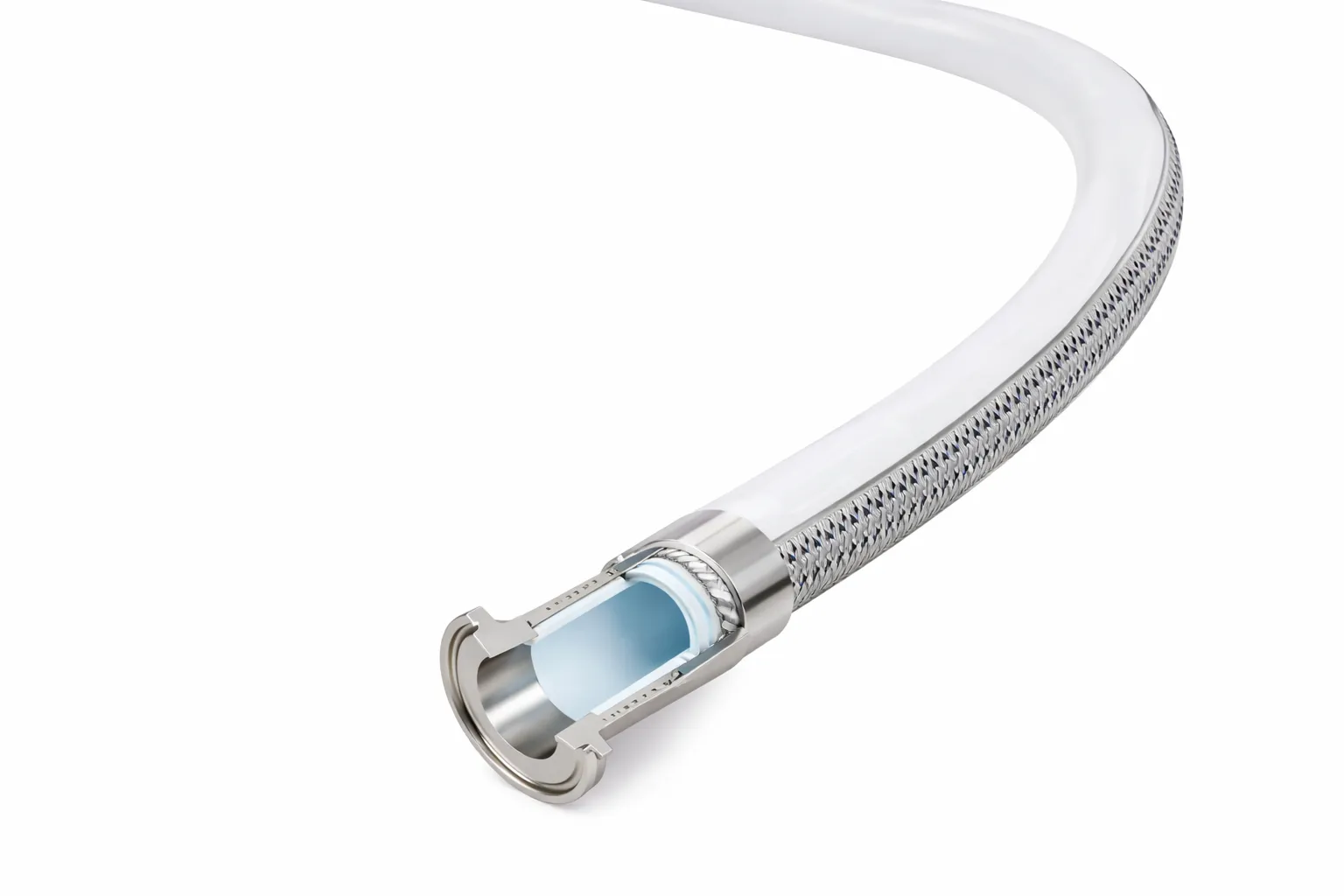

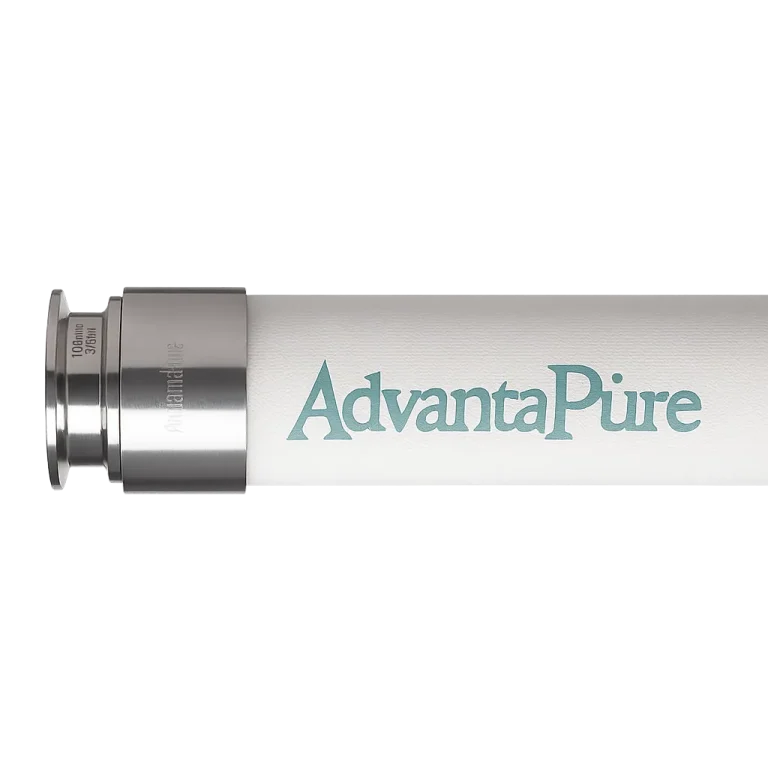

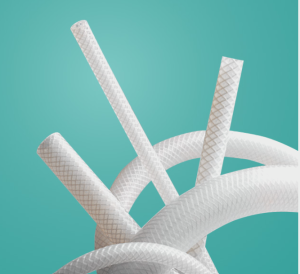

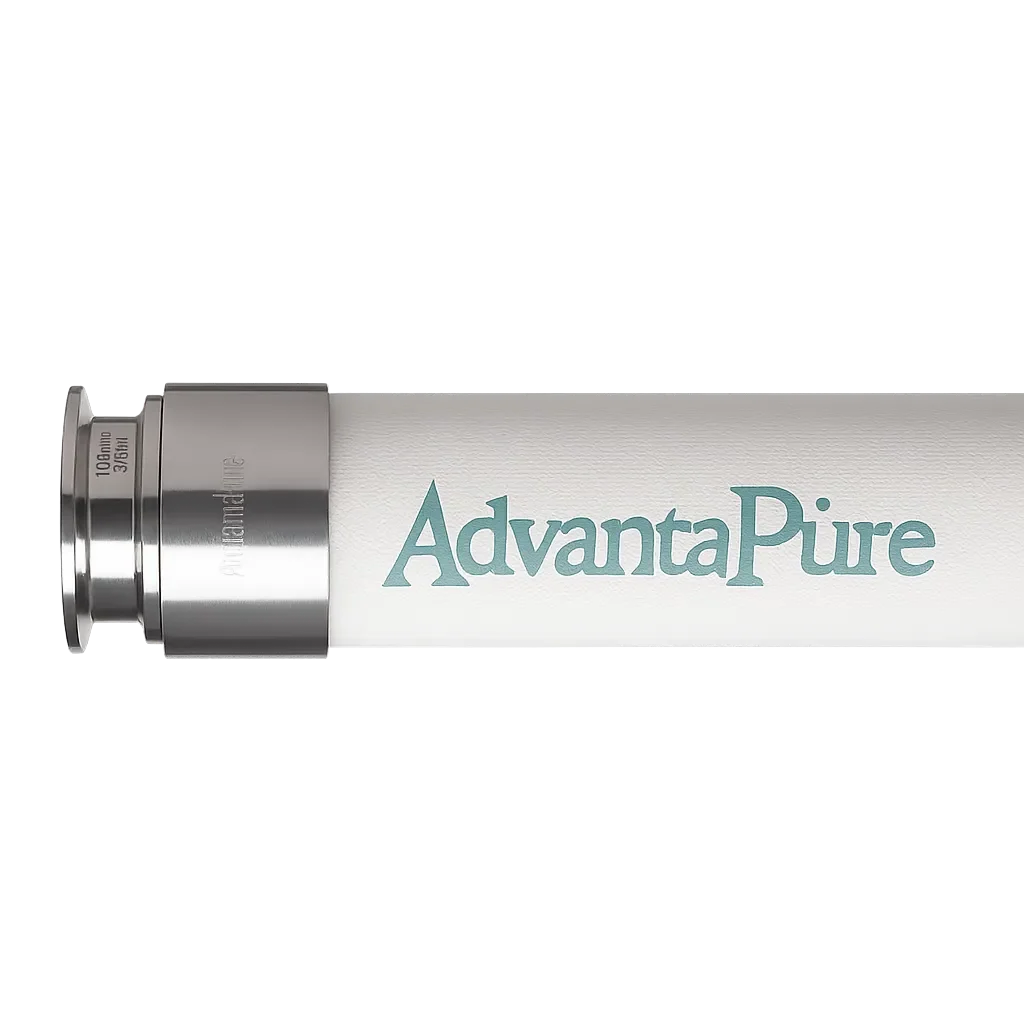

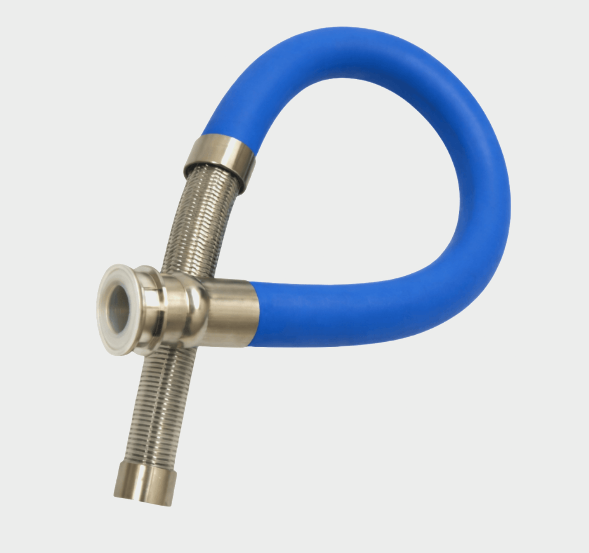

Hose Assemblies

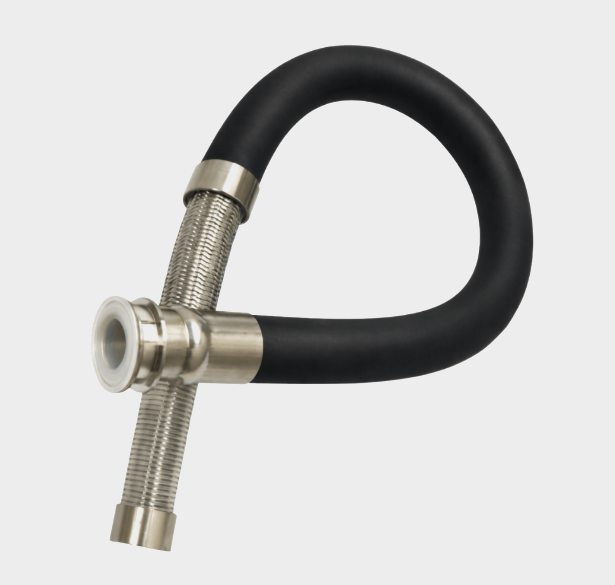

Custom hose assemblies fabricated, pressure tested and certified in an accredited facility.  A range of fittings and hose materials are available including EPDM, USP Class VI Silicone and PTFE options.

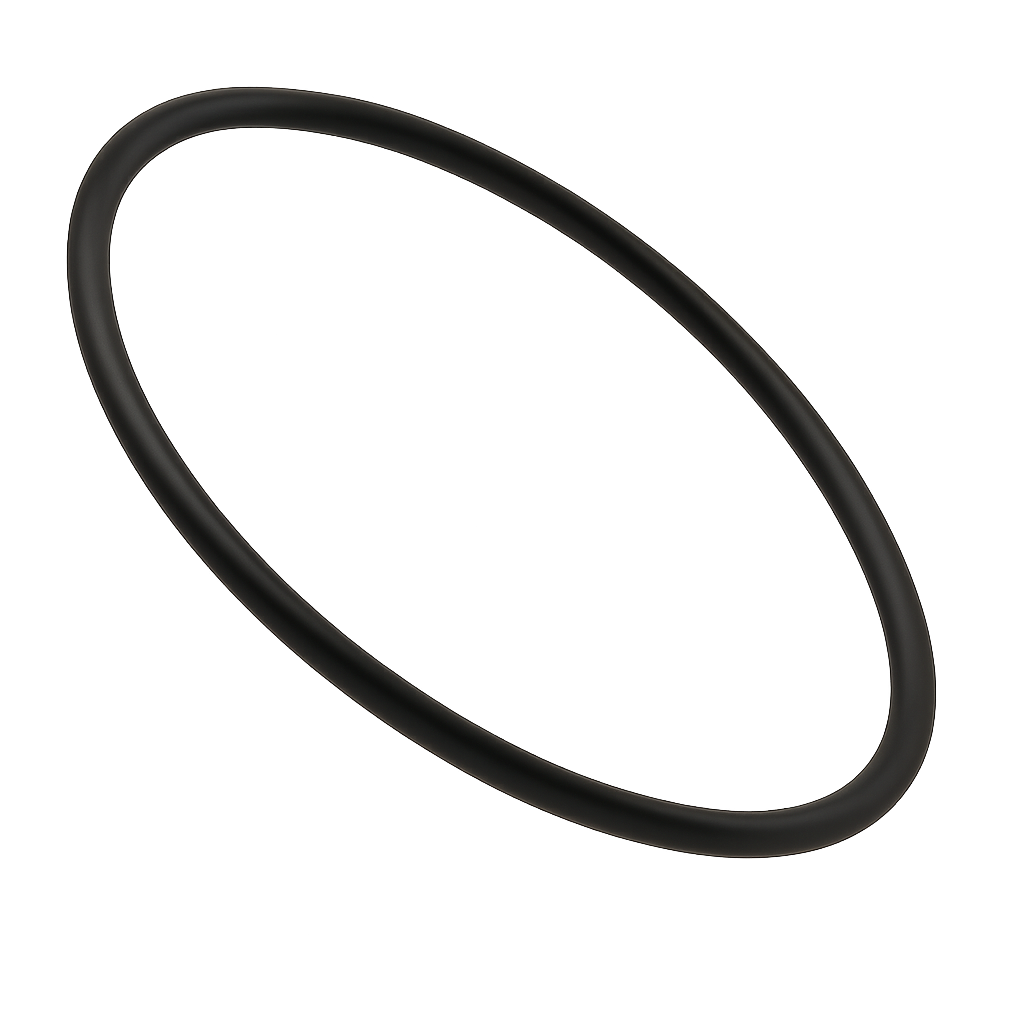

O-Rings

Material options: Silicone, Viton™ (FKM), EPDM, Silverback™, PTFE (Teflon™), Buna (NBR), and HNBR.
Compliant with FDA, USP Class VI and other sanitary and high-purity process standards.
Batch traceability of compound formulation through to finished product.

Product Options

Process Filtration

Cartridges, capsule filters, depth filters and hardware for  clarification, prefiltration, venting and sterilising-grade filtration.

Further detail via PharmEquip

Filtration Hardware

Housing Options

Sanitary liquid filter housings

Single or multiple cartridge configurations.
T-line, in-line and self-drainable configurations.
2.5, 5, 10, 20 & 30 inch versions.
Range of vent, drain & inlet/outlet combinations.
316L standard and special material options (e.g. Titanium, Hastelloy C22 )
Manufactured in accordance with European regulations.

Sanitary gas filter housings

Single or multiple cartridge configurations.
T-line and in-line configurations.
2.5, 5, 10, 20 & 30 inch versions.
Range of vent, drain & inlet/outlet combinations.
316L standard and special material options (e.g. Titanium, Hastelloy C22 )
Manufactured in accordance with European regulations.

Sanitary vent filter housings

In-line design.
Up to 30 inch lengths.
Range of configurations available.
316L stainless steel.
Manufactured in accordance with European regulations.

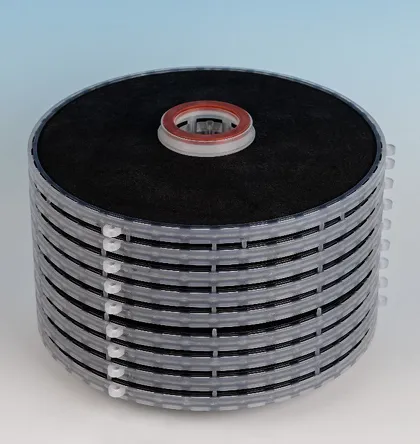

Sanitary lenticular filter housings

316L standard and special material options (e.g. Titanium, Hastelloy C22 )
Manufactured in accordance with European regulations.

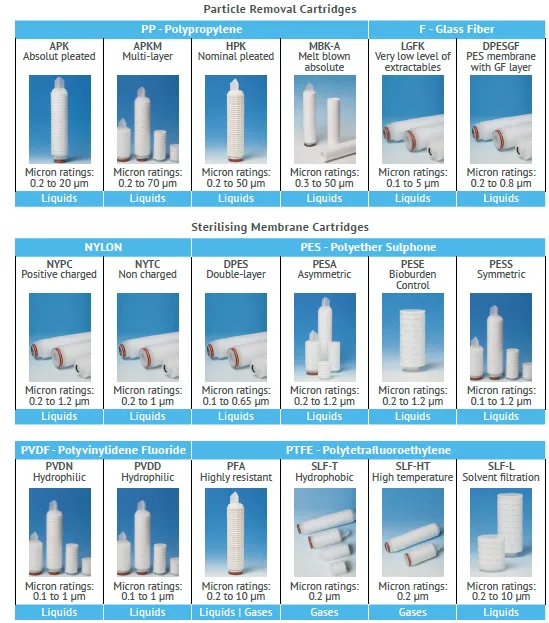

Process Cartridge Filters

Cartridge filters for clarification and sterilising / bioburden reduction, gas filtration and venting duties.

Media/membranes in PP,GF, Nylon, PTFE, PES and PVDF.
Pore size ratings from 0.1 µm to 70 µm.
Lengths up to 40 inches.
Available in common end cap / adapter configurations.

Biopharmaceutical Filtration Guide PDF

Process Capsule Filters

Capsule filters for clarification and sterilising / bioburden reduction, gas filtration and venting duties.

Media/membranes in PP,GF, Nylon, PTFE, PES and PVDF.
Pore size ratings from 0.1 µm to 70 µm.
Lengths up to 30 inches.
Available in common end cap / adapter configurations.

Biopharmaceutical Filtration Guide PDF

Liquid and gas capsules

The MasterCap MC-Capsule are used for removal of micro-organisms and fine particles from liquids and gases. Made of polypropylene shell and high-performance filtration media such as PP, PES, PTFE, PVDF, NYLON and Glass Fiber (GF) with a pore size of from 0.1 to 10 μm. They are the ideal filters to satisfy the highest standards in a broad range of applications.

Available from 500 cm² to 30” lengths
T-style and inline versions available
High throughput and 100 % integrity tested
Sterilisable in autoclave multiple cycles

In-Line Steam Sterilisable capsules

The MasterSip MS-Capsules are designed for use in sterile air and gas filtration in biopharmaceutical and other applications. Composed of a hydrophobic 0.2 μm PTFE membrane and a polyetherimide housing, these capsule filters provide an alternative to a stainless-steel housing/filter combination and thus reduces operating costs and maintenance time.

In situ integrity testable by WIT.
Low investment cost compared to a standard cartridge and stainless-steel housing system.
Repeated SIP cycles for a long service life.
Able to operate at high gas. pressure up to 6.9 bar.

Product Specifications

Liquid and gas filtration discs

The Masterfilter DF Disc Filters offer many different options for membrane filtration in various applications. Robust polypropylene hardware and high-performance hydrophobic 0.2 μm PVDF and PTFE membrane suit to satisfy the highest standards in a broad range of applications.

Removal of particles and microorganisms for liquids and gases
Minimal hold-up volume
Autoclavable

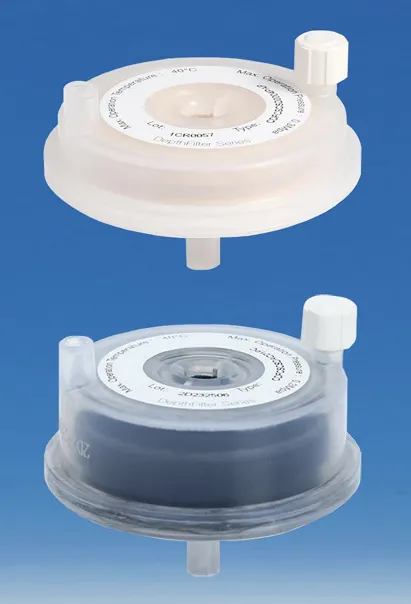

Depth Filtration

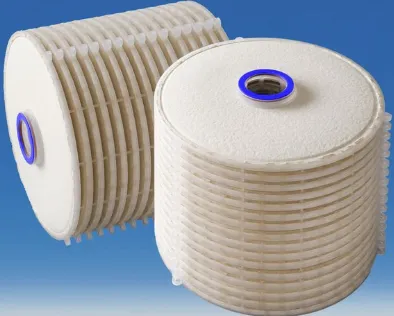

Depth filtration using high purity cellulose and inorganic filter aid or high-purity cross-weaved lignocellulose with activated carbon powder.  Formats include lenticular, capsule and module/cassette types.

Contact Us for further details.

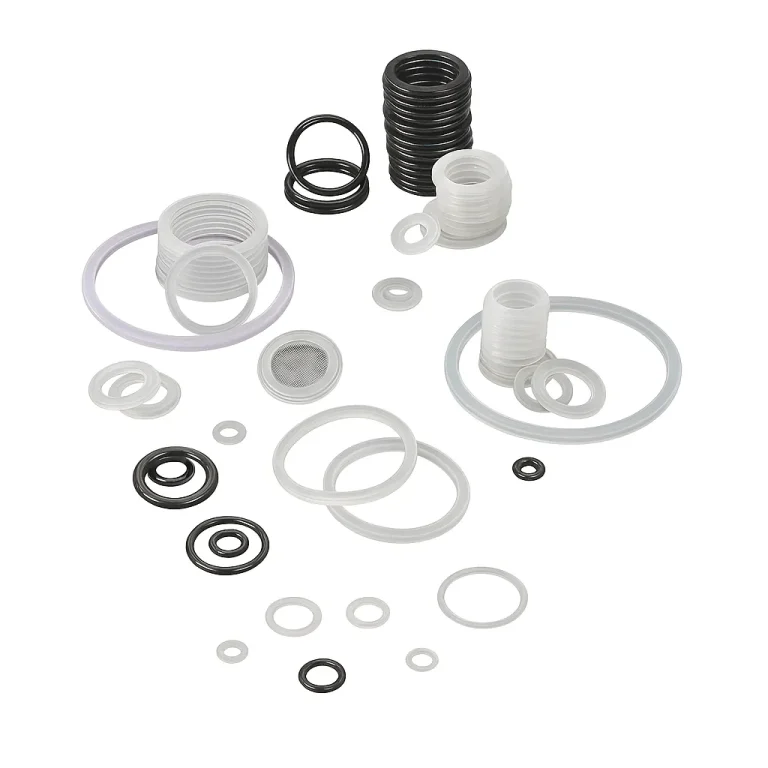

Sanitary Gaskets

Material options: Silicone (white & clear types), Viton™ (FKM), EPDM, PTFE (Teflon™), Buna (NBR), and HNBR.

Varaiations include envelope types, perforated strainer & screen/sock screens, orifice plates, slit ID types.

Compliant with FDA, USP Class VI and other sanitary and high-purity process standards.

Batch traceability of compound formulation through to finished product.

Product Options

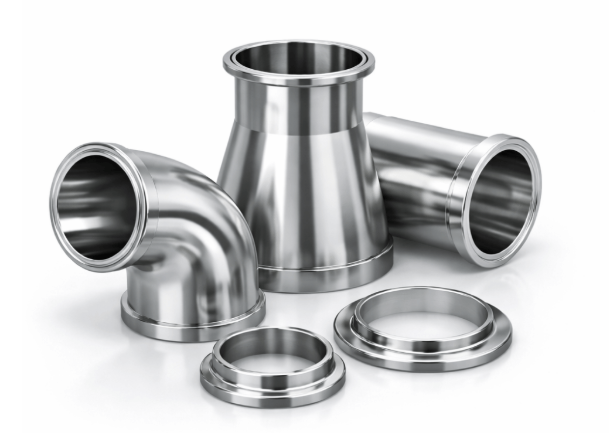

Stainless Steel Flow Components

Product Options

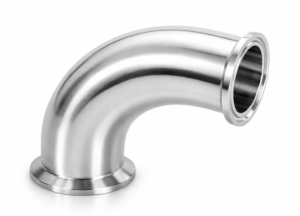

Biopharm BPE Fittings

Hygienic BPE Fittings for High-Purity Applications

Product Specifications

Tube and OD fittings

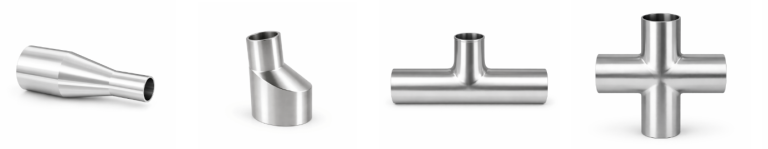

Stainless Steel Butt-weld fittings for process pipework.

Product Options

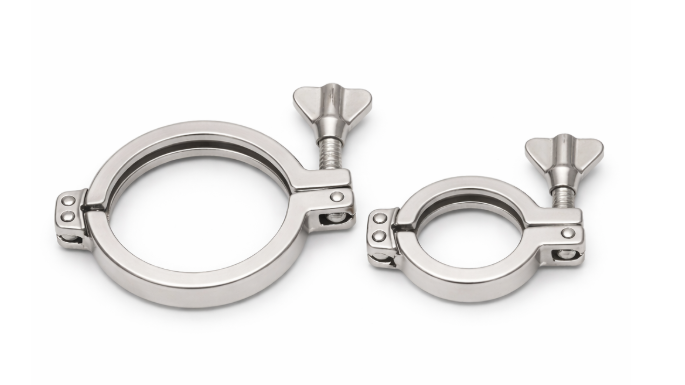

Clamp Fittings

Product Options

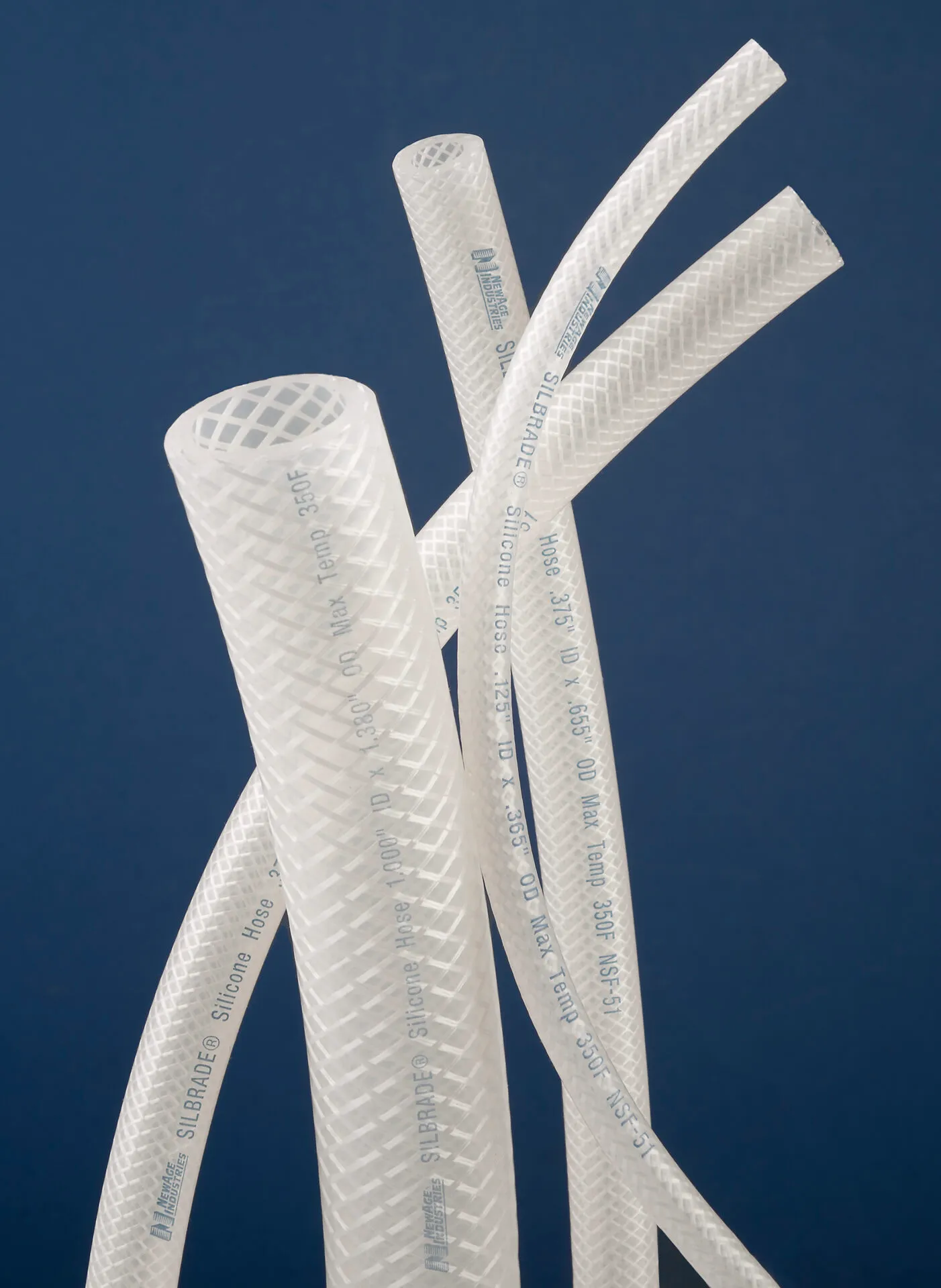

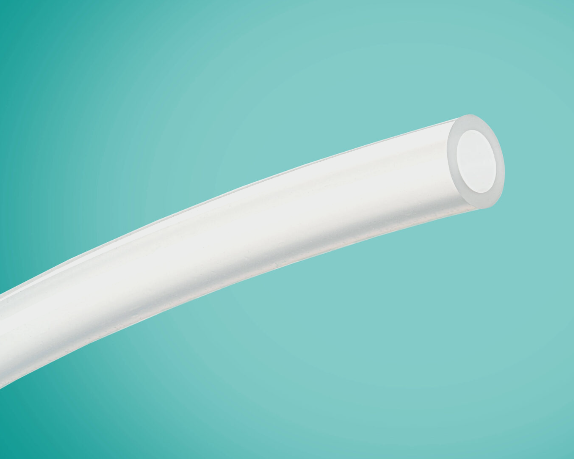

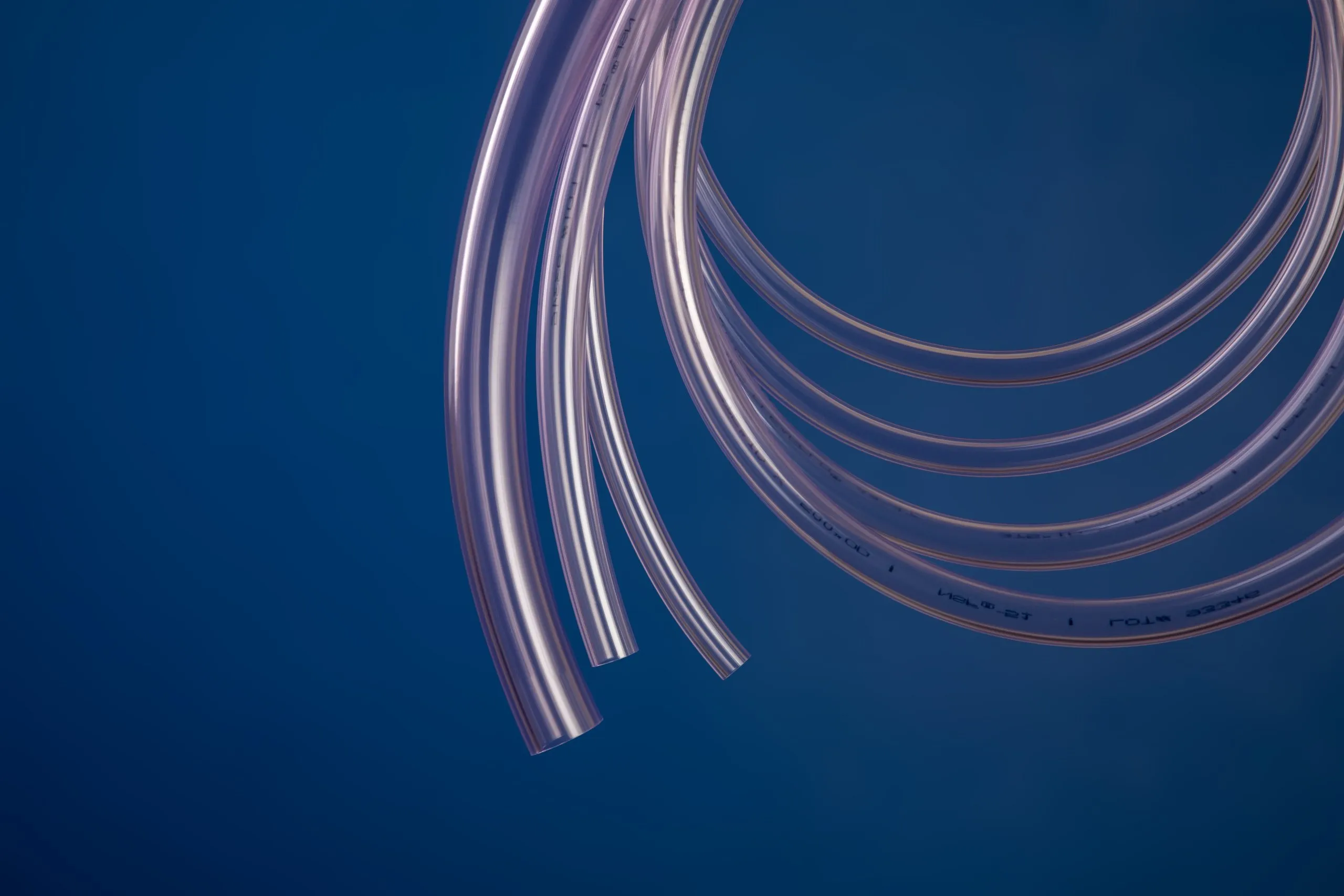

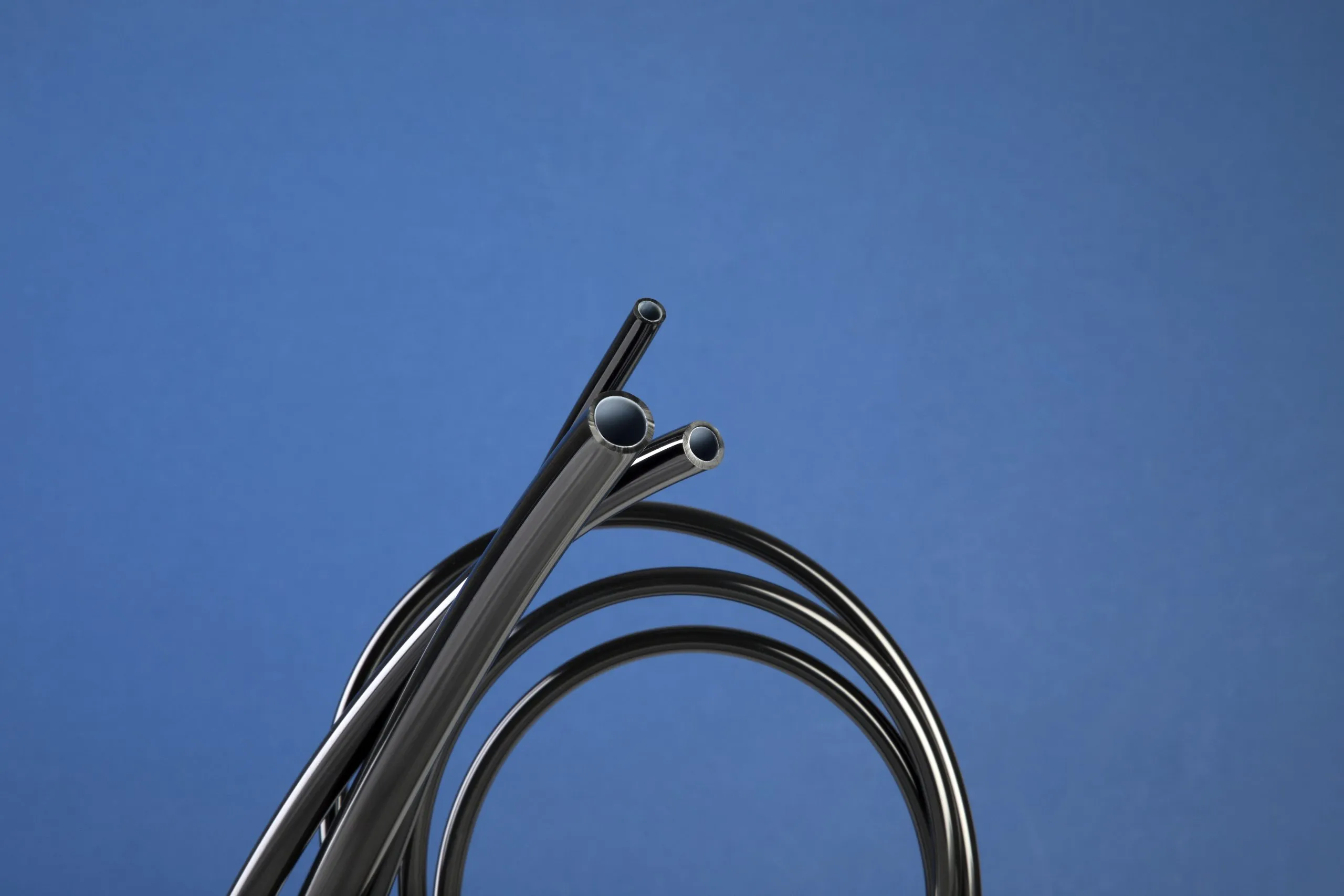

Tubing

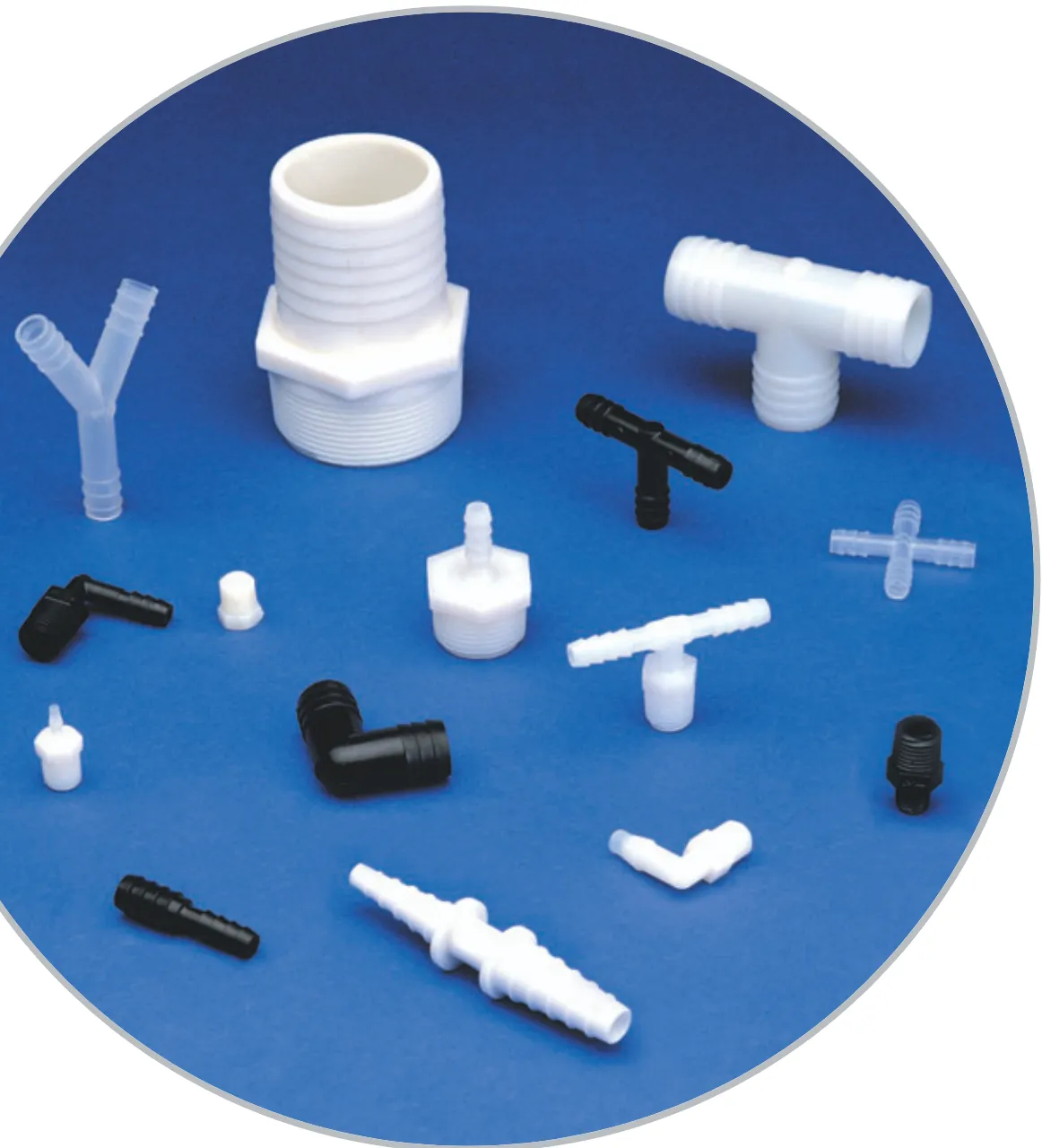

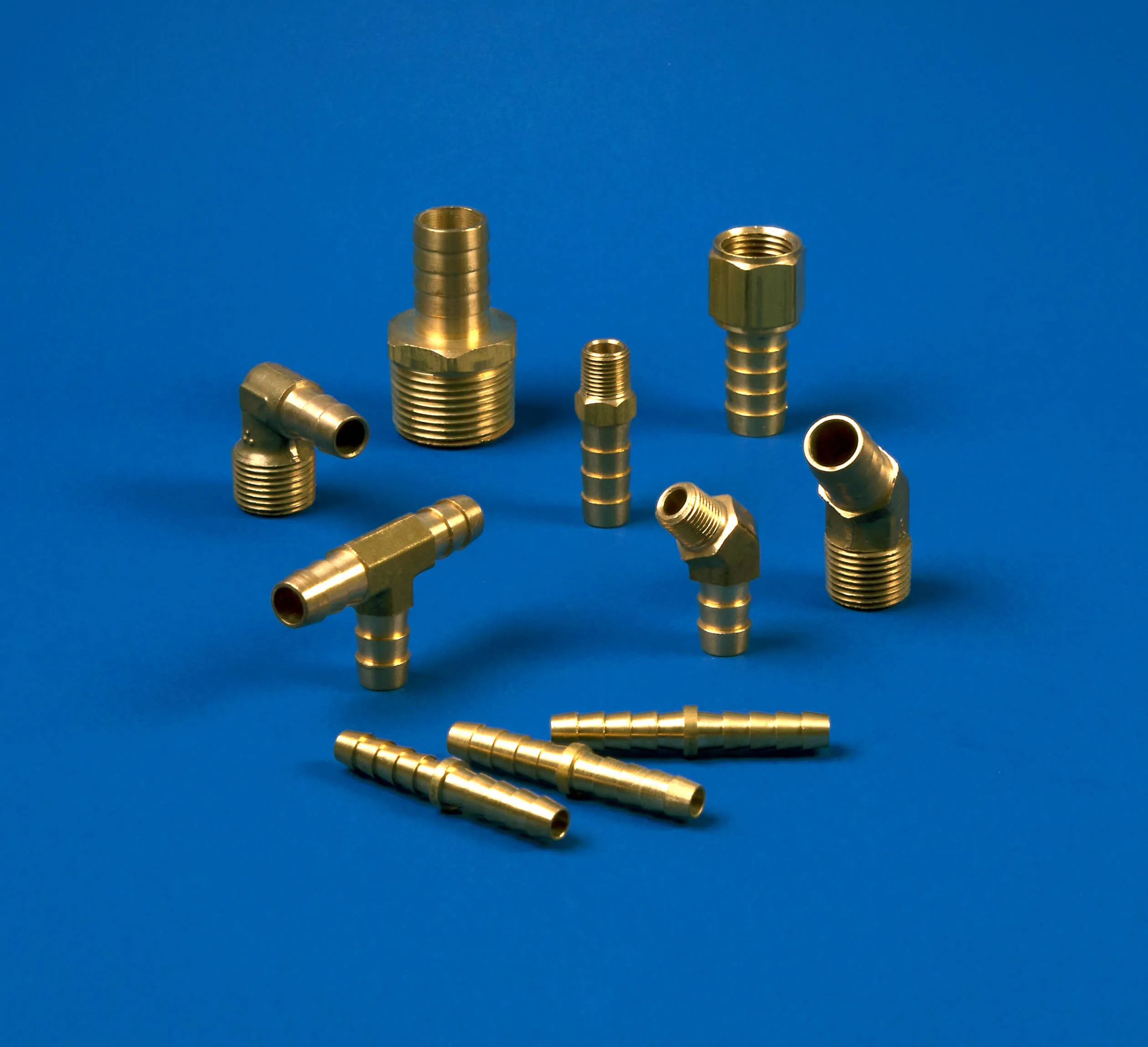

We source a wide selection of tubing and fittings for fluid-transfer systems and general use in laboratory, pharmaceutical, food/beverage in both general and high-purity processes.

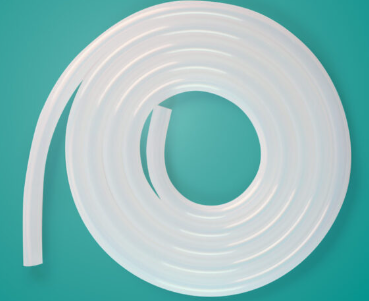

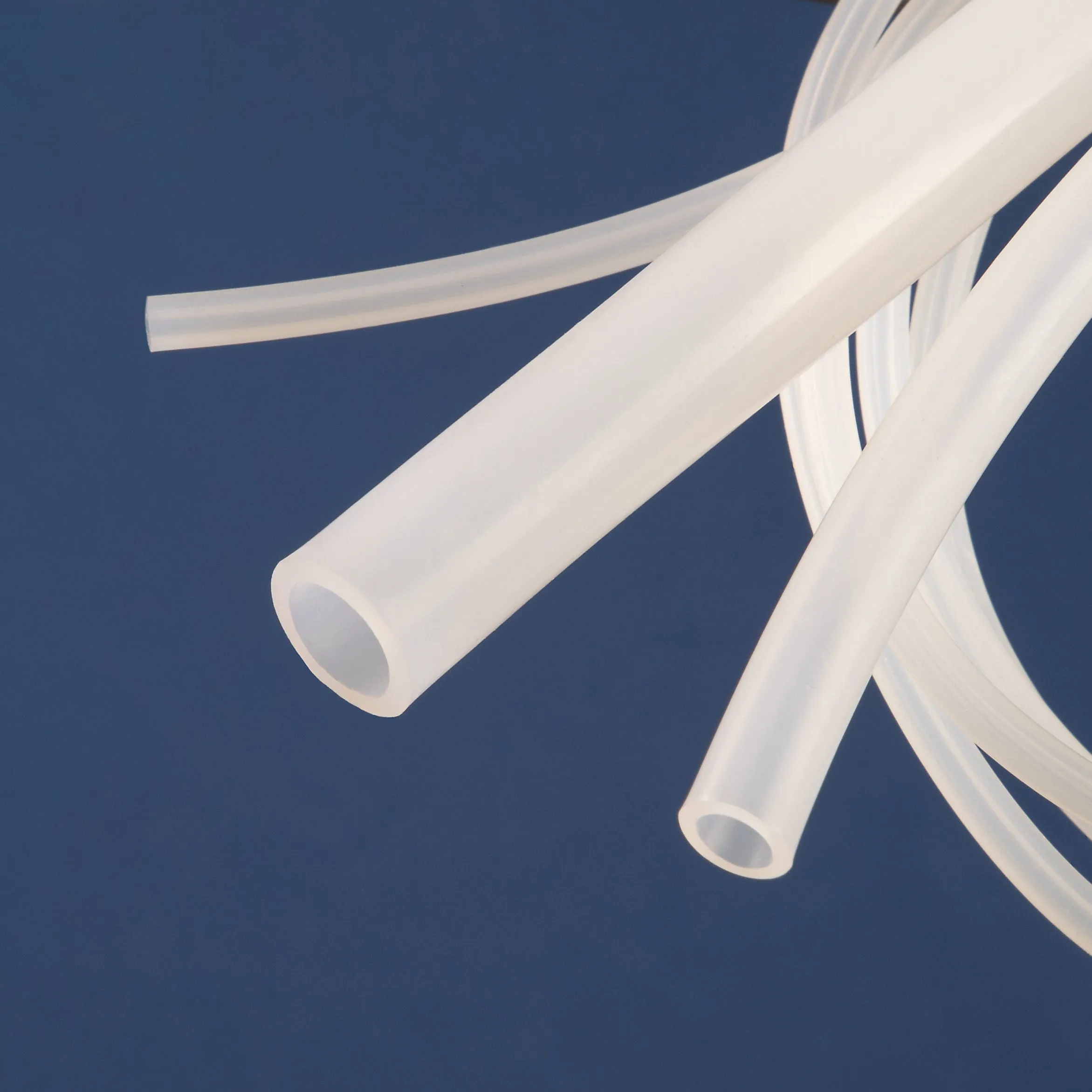

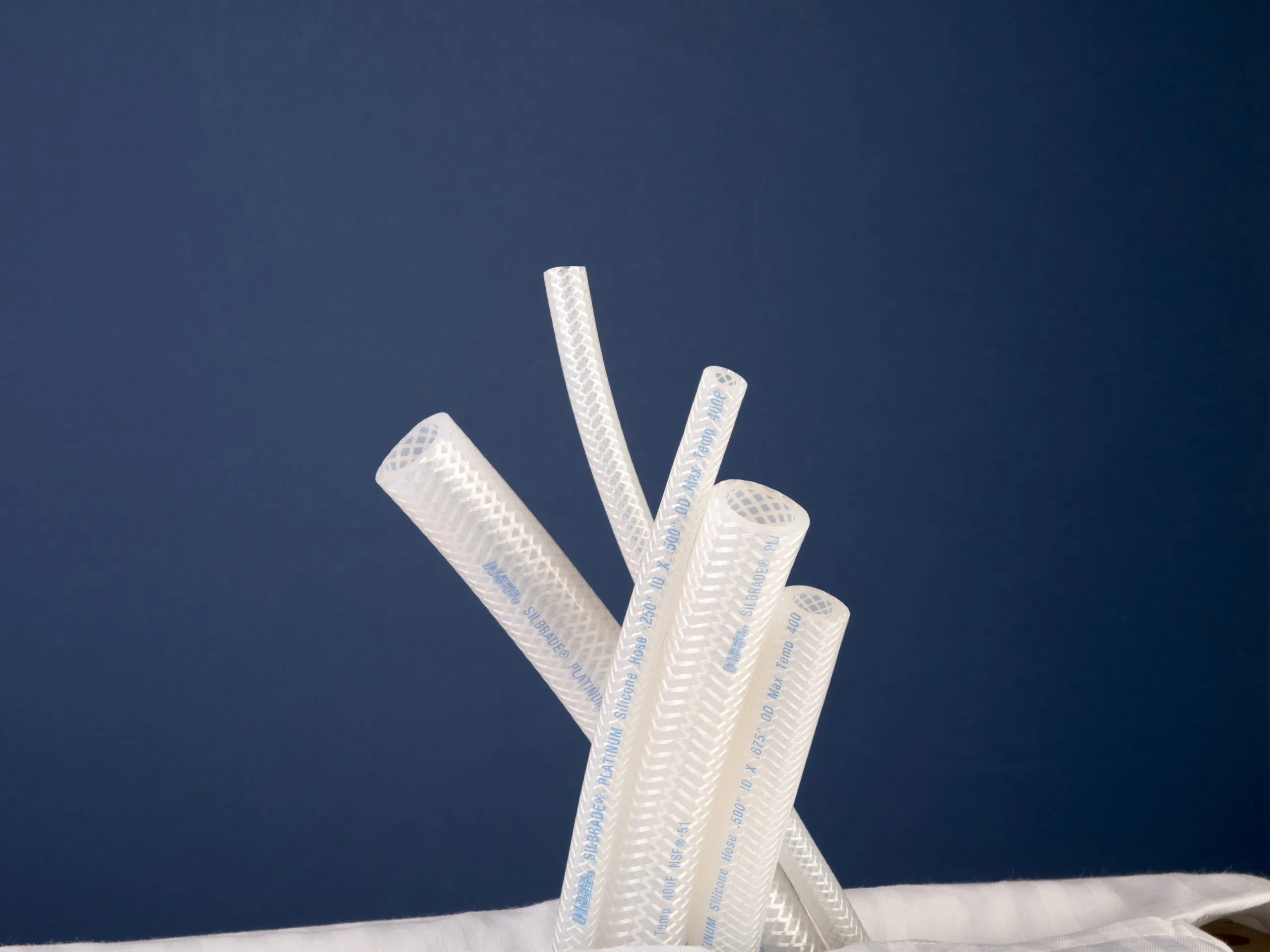

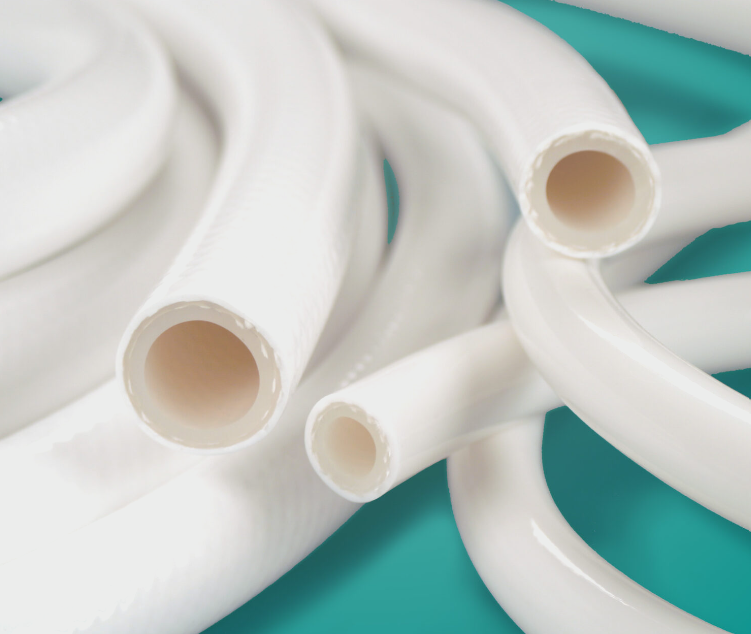

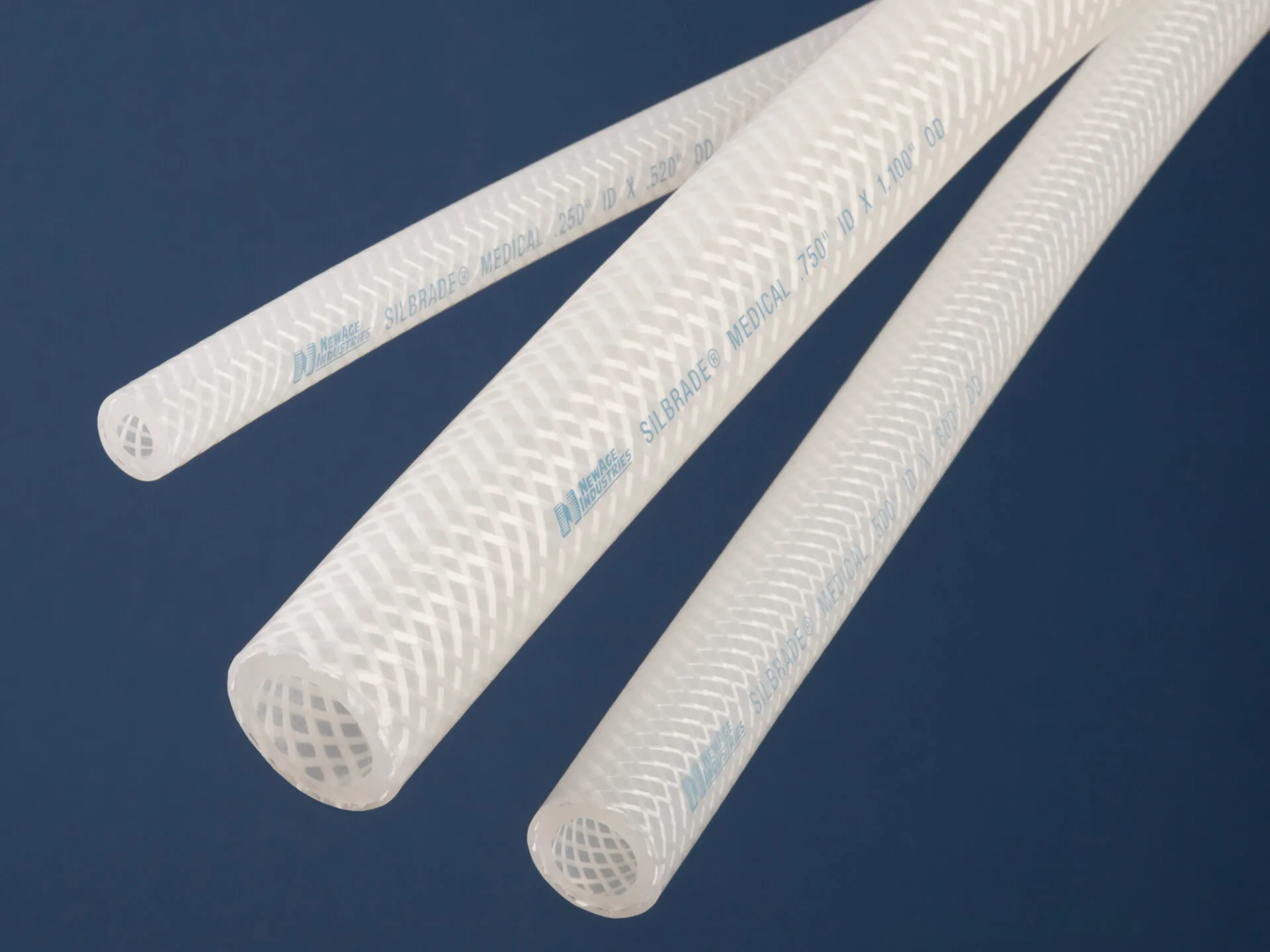

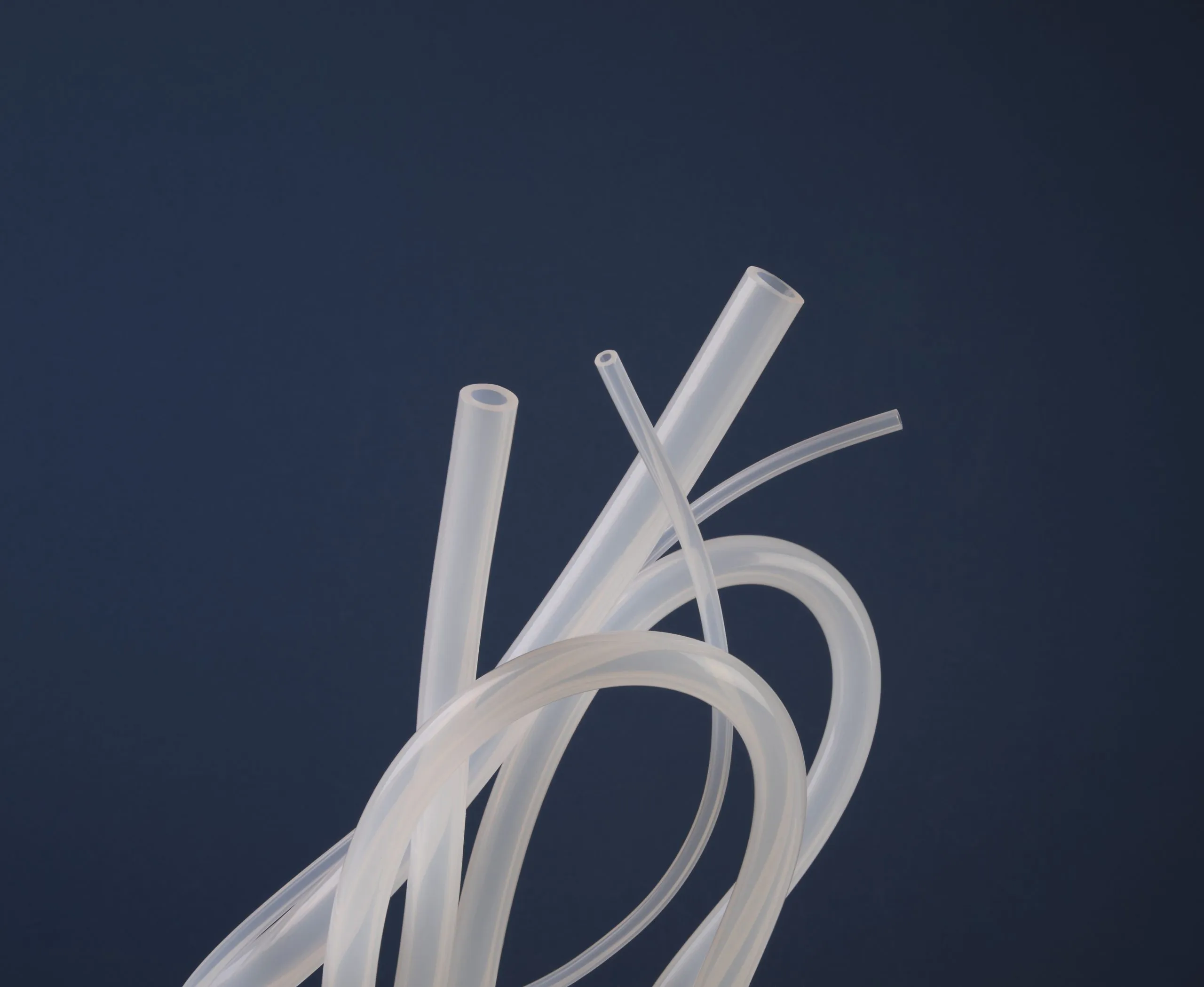

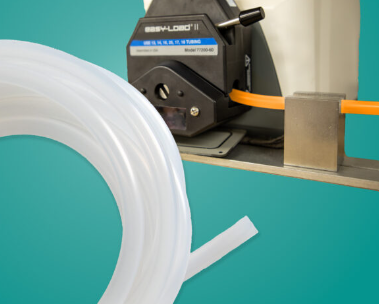

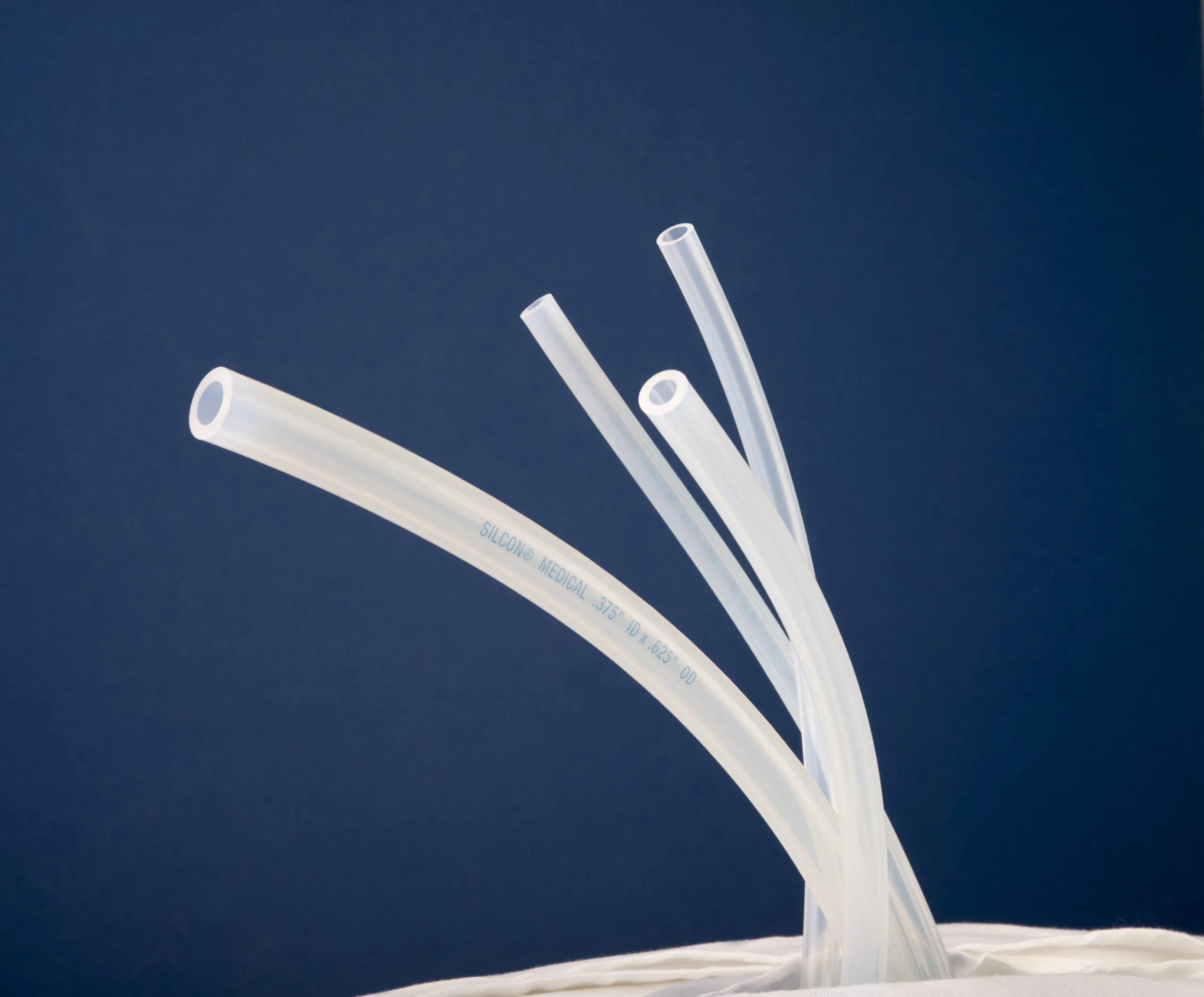

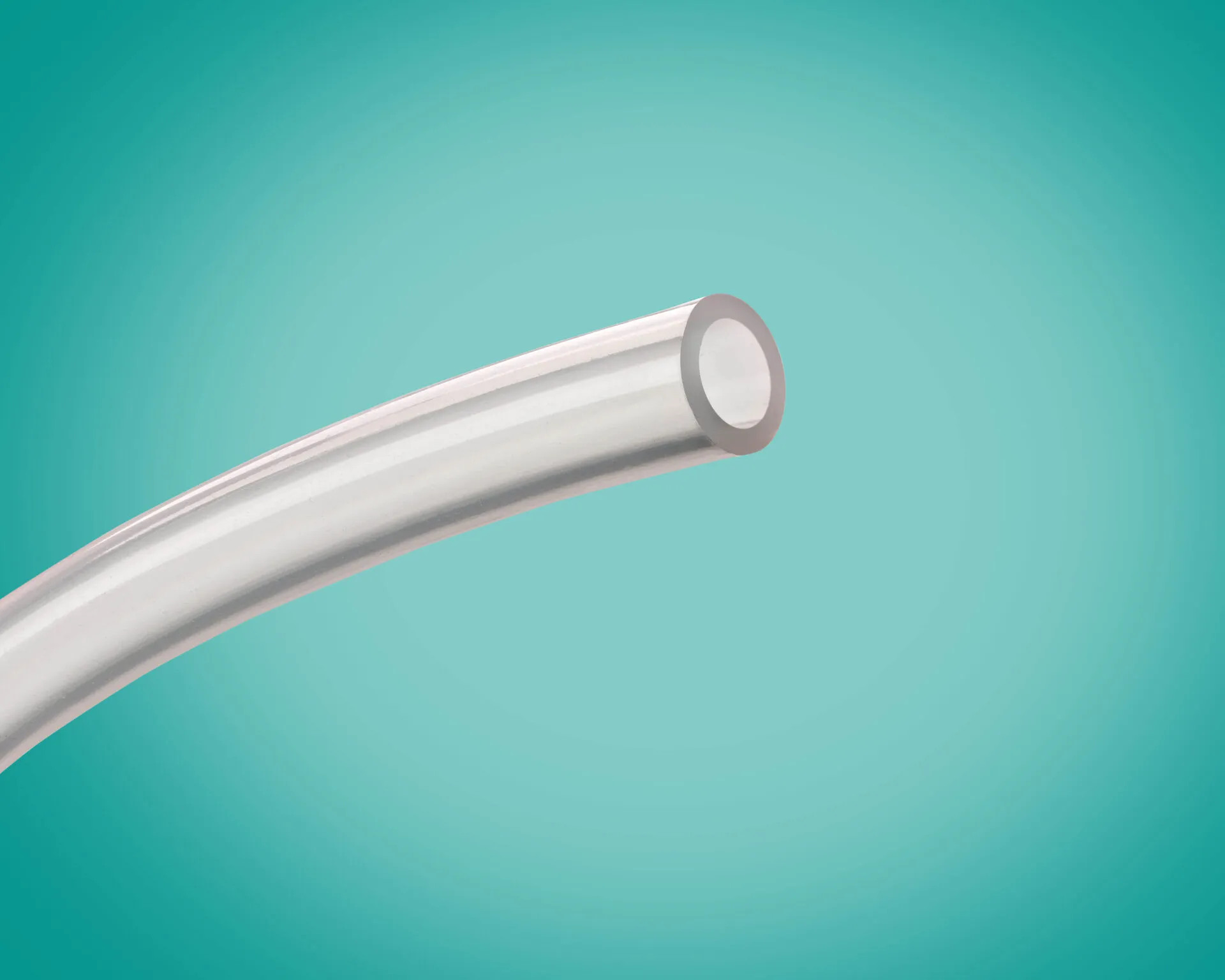

This includes USP Class VI Platinum-cured silicone tubing and other materials for bio/pharma applications, tube sets, single-use systems and peristaltic pumping duties.

The range of tube products are available in the following materials:

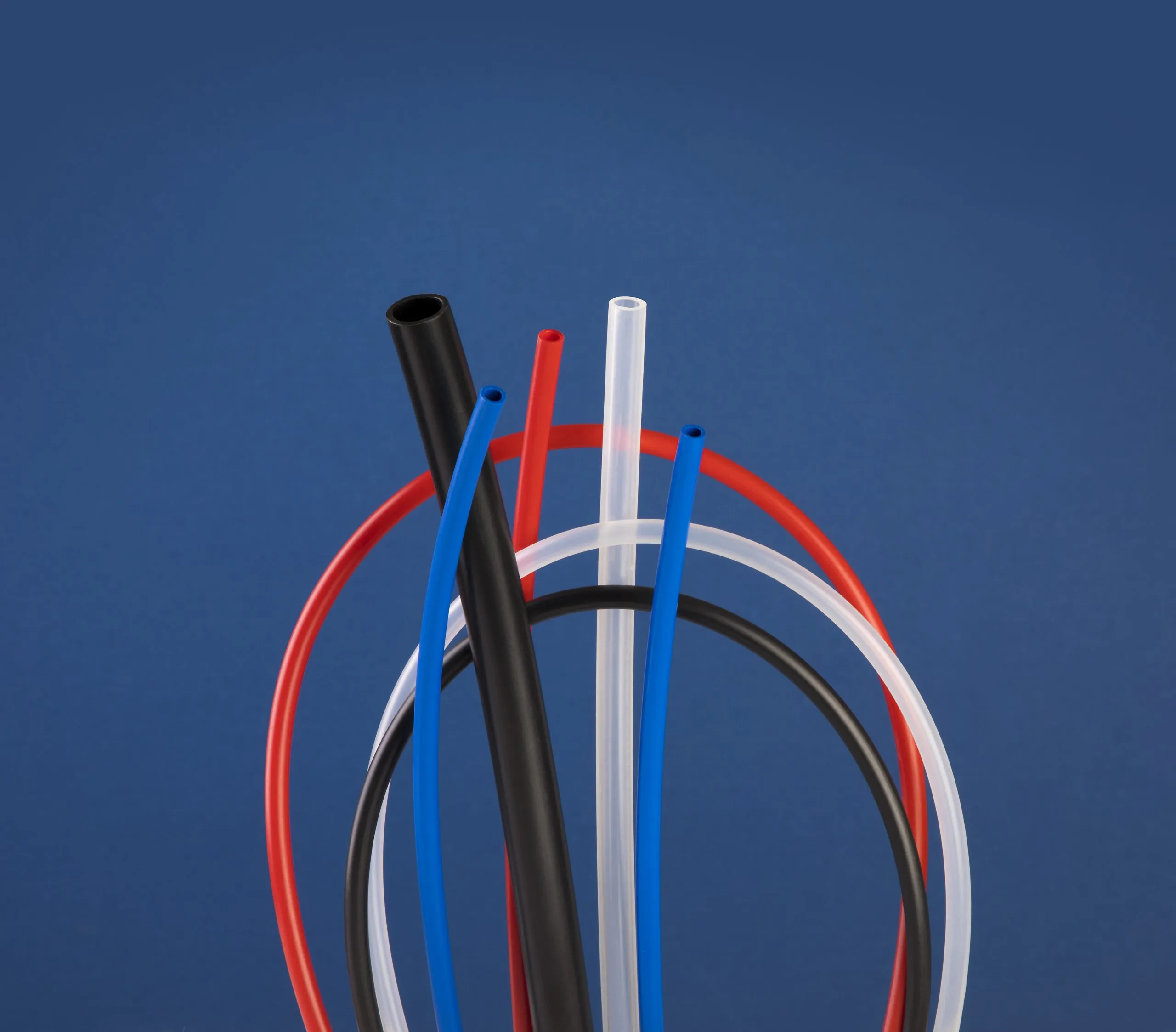

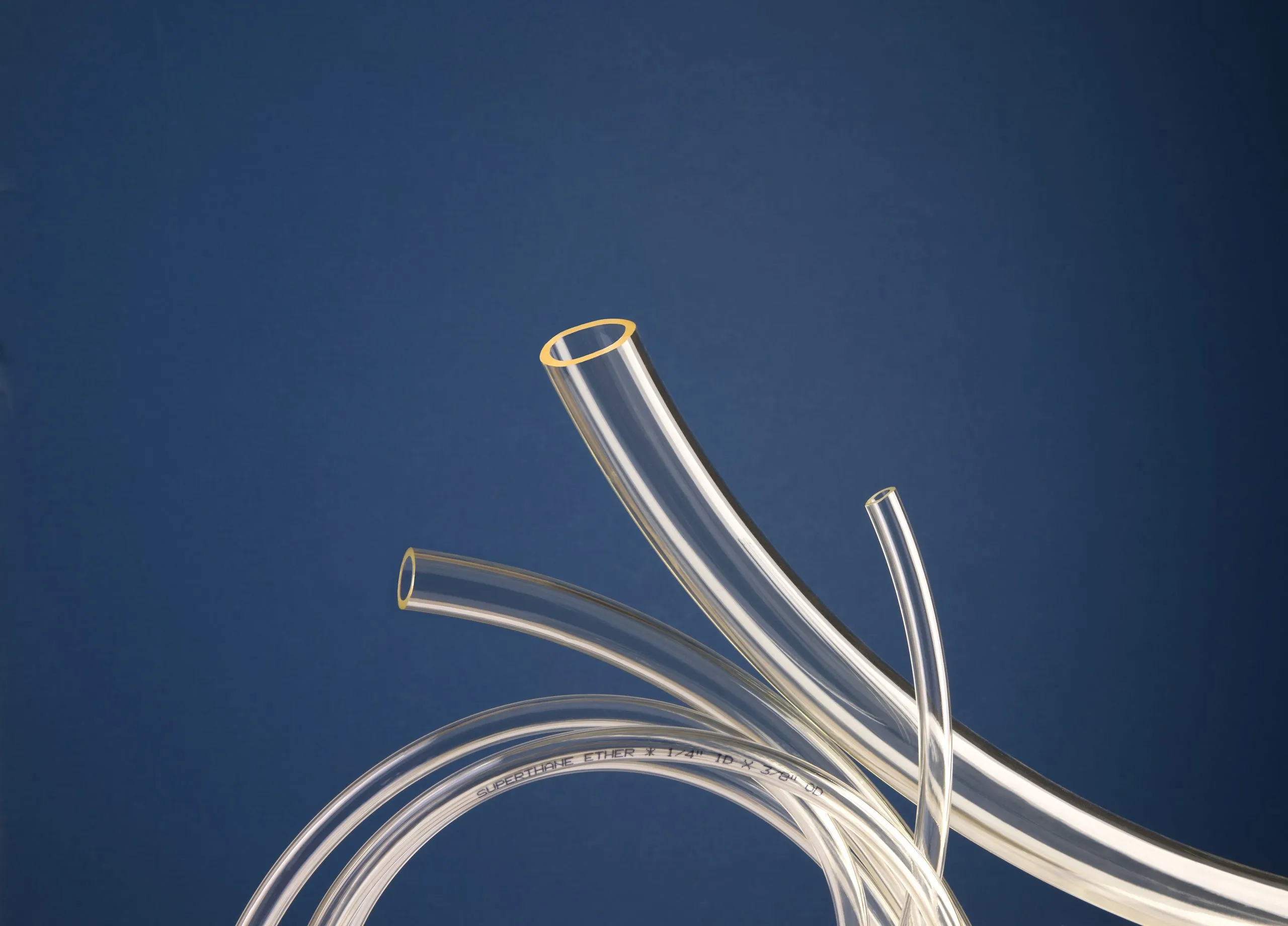

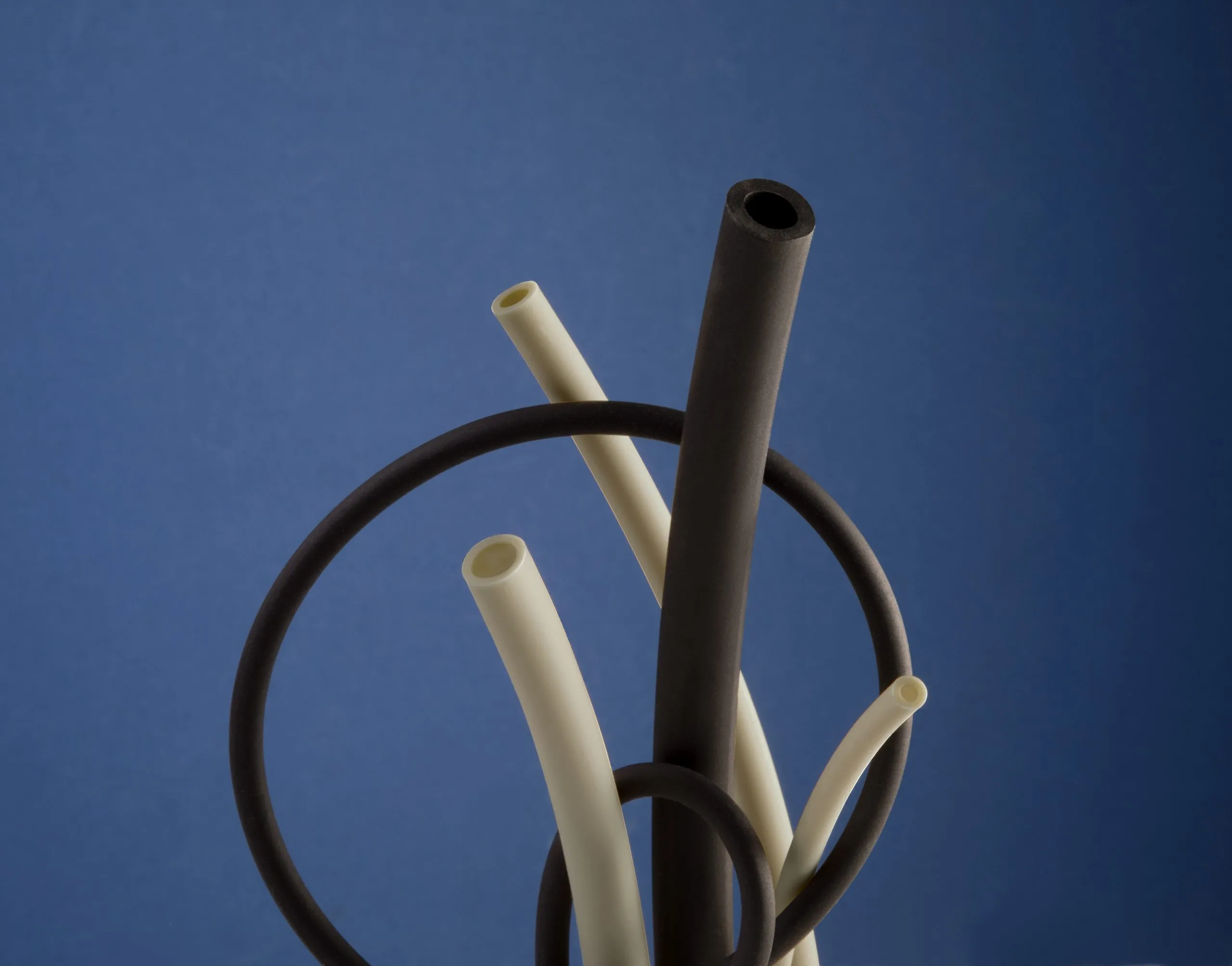

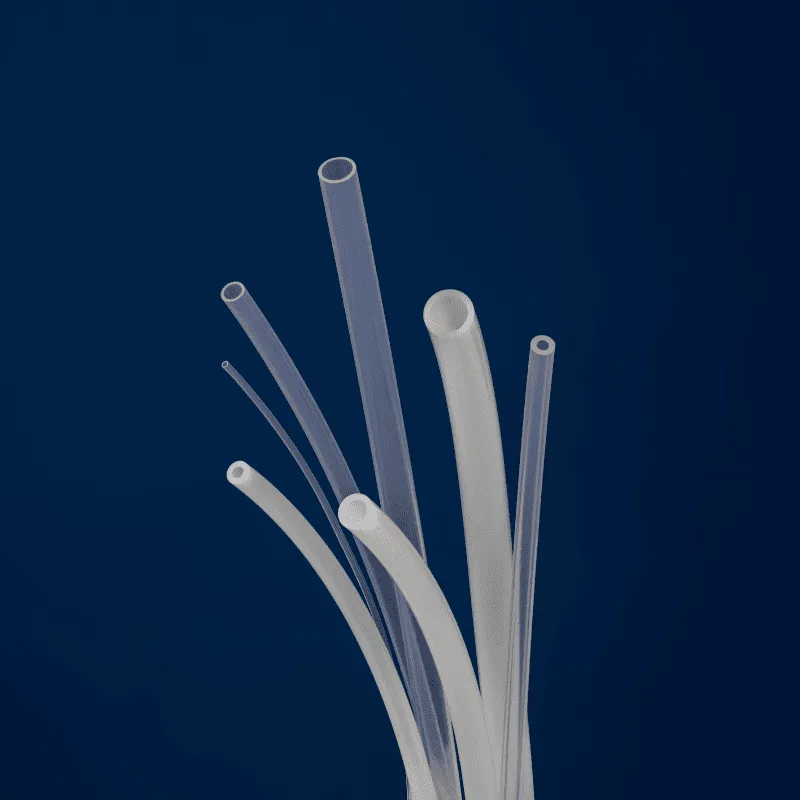

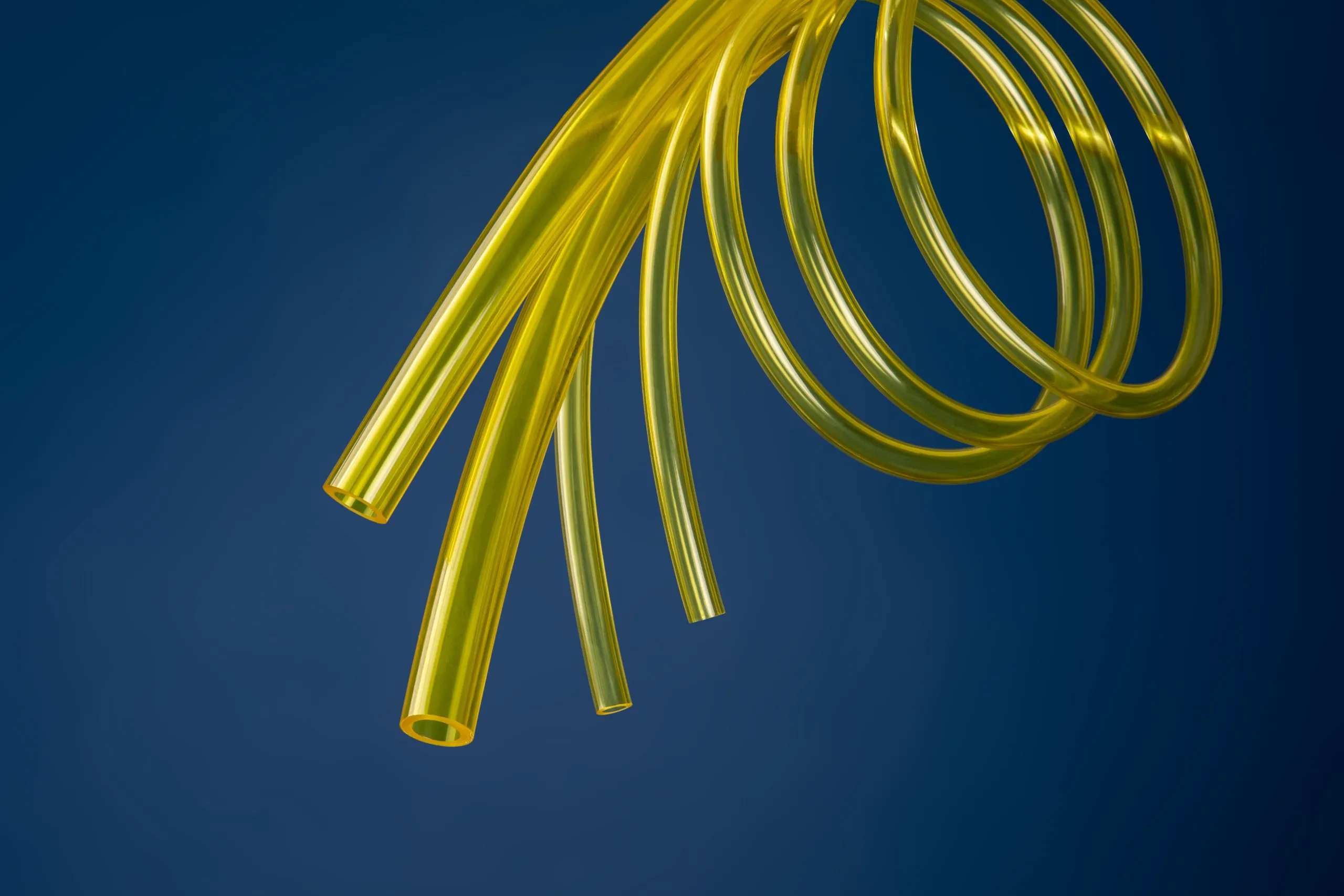

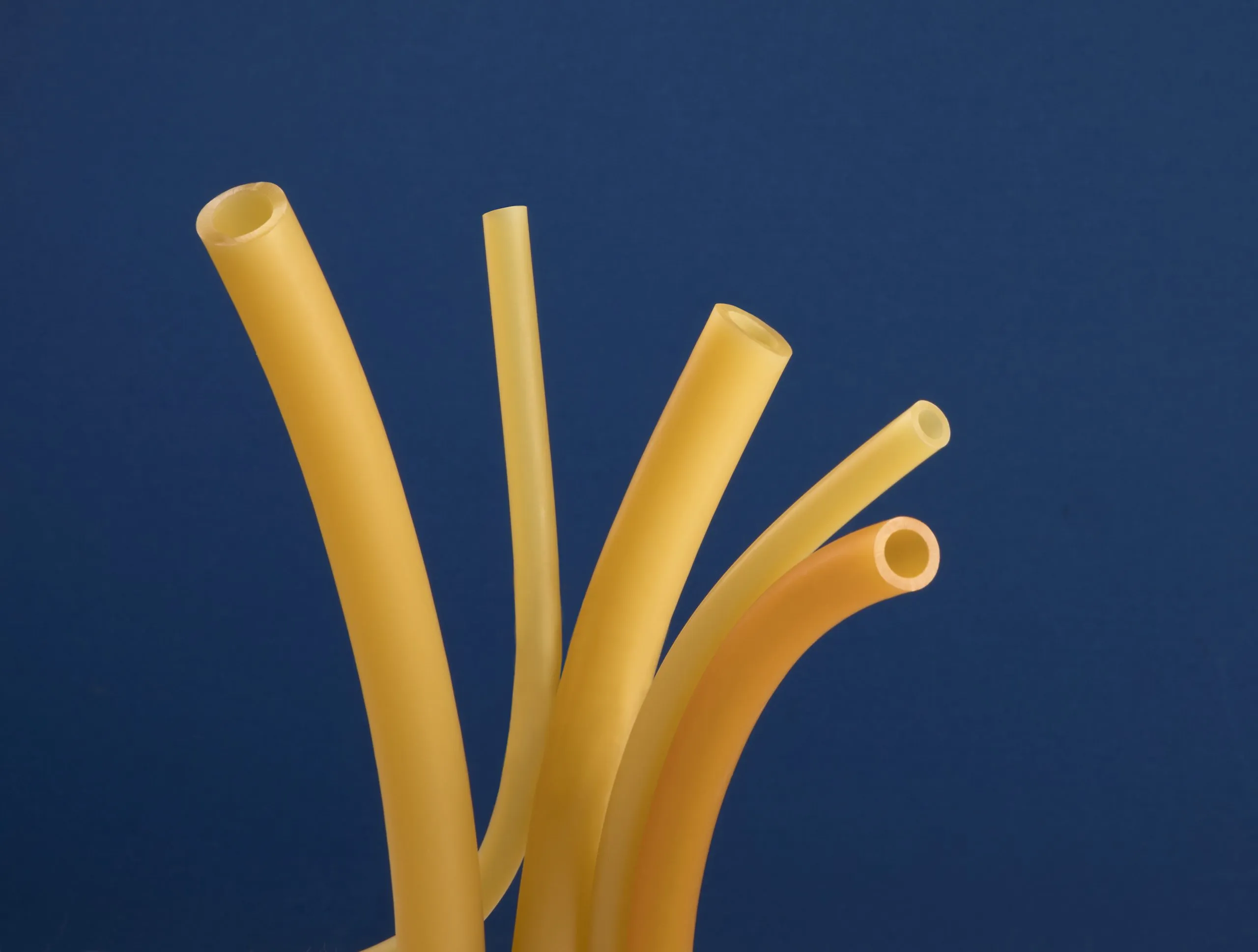

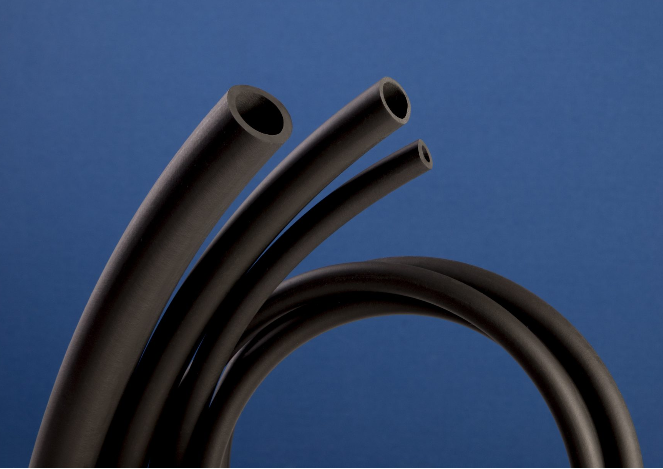

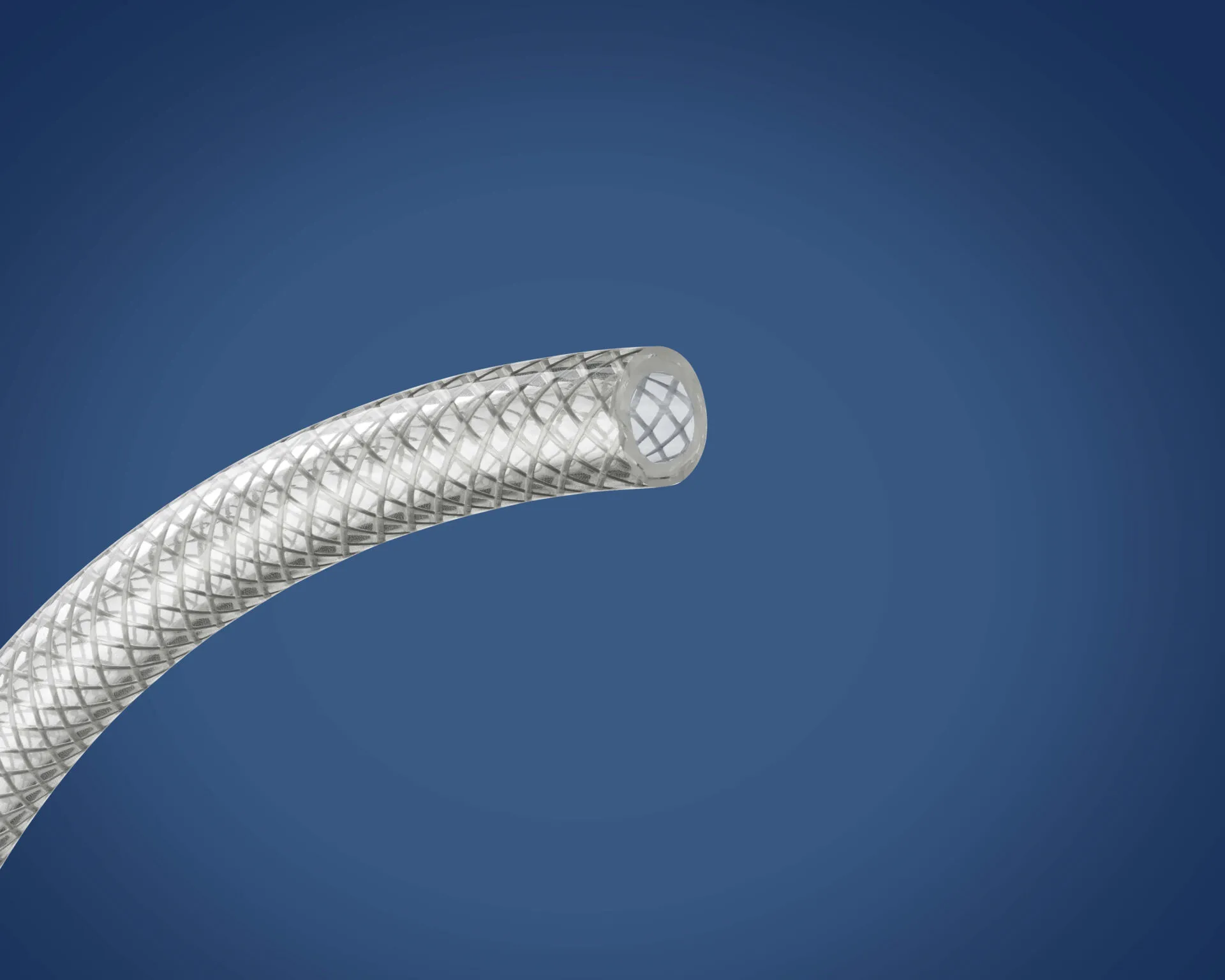

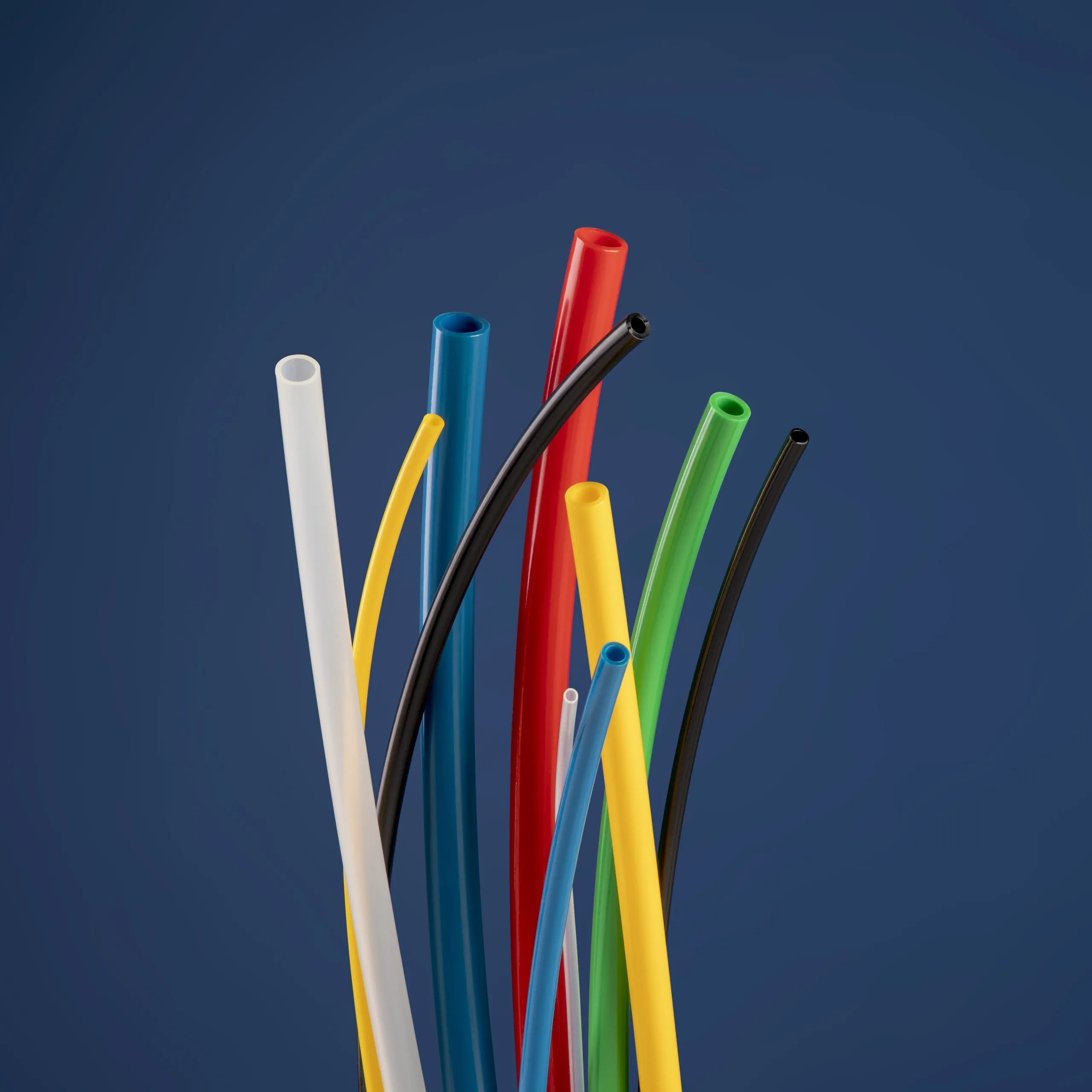

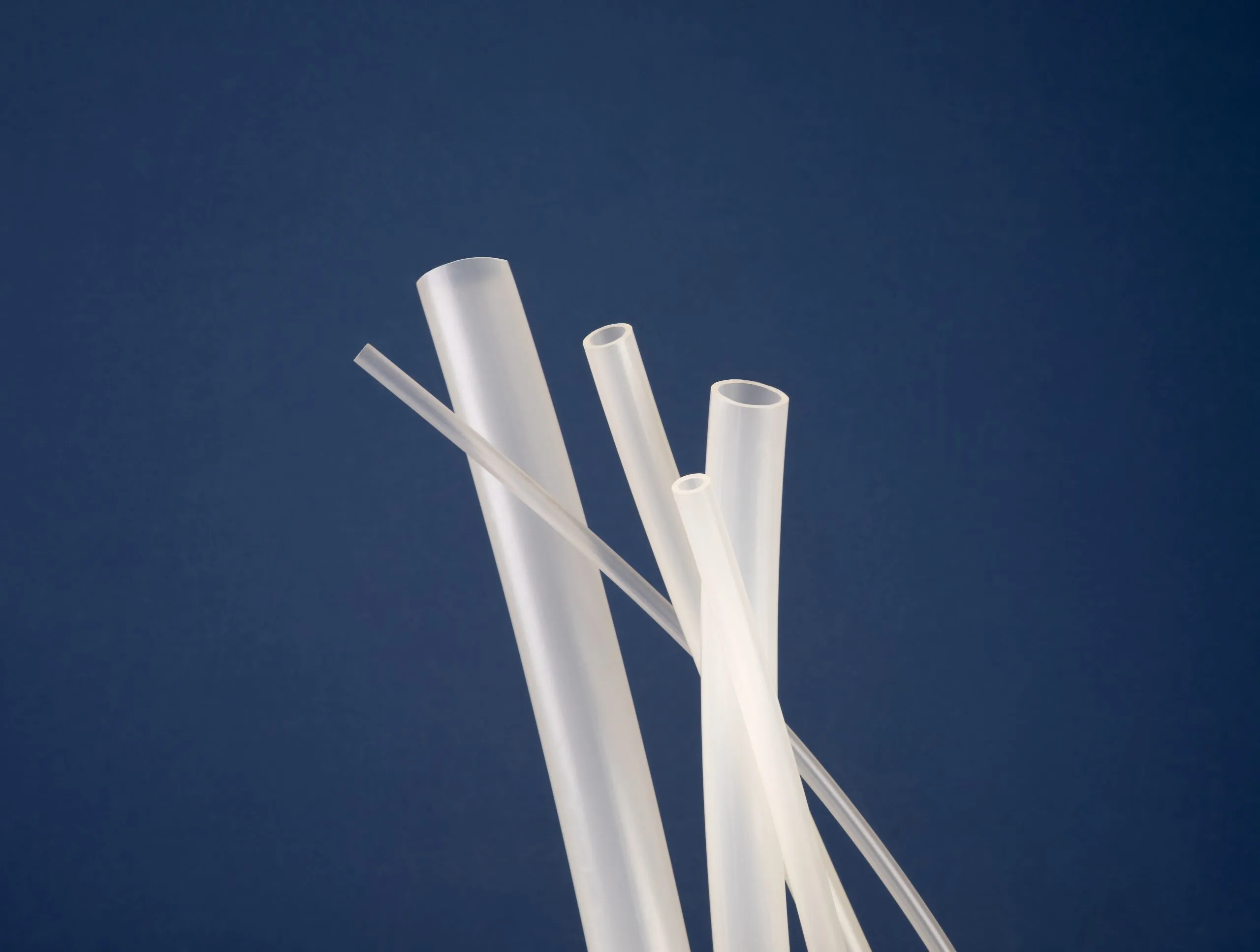

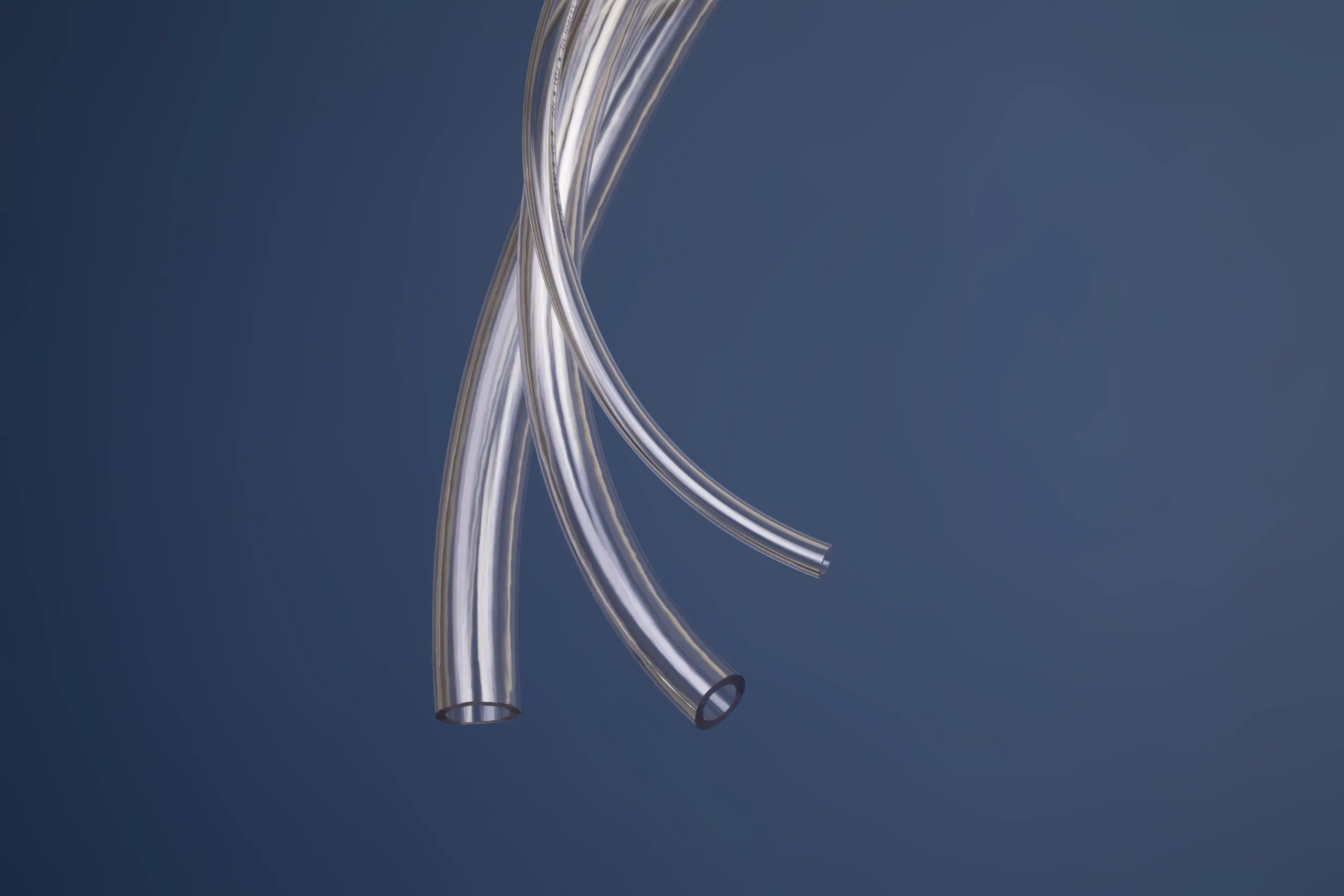

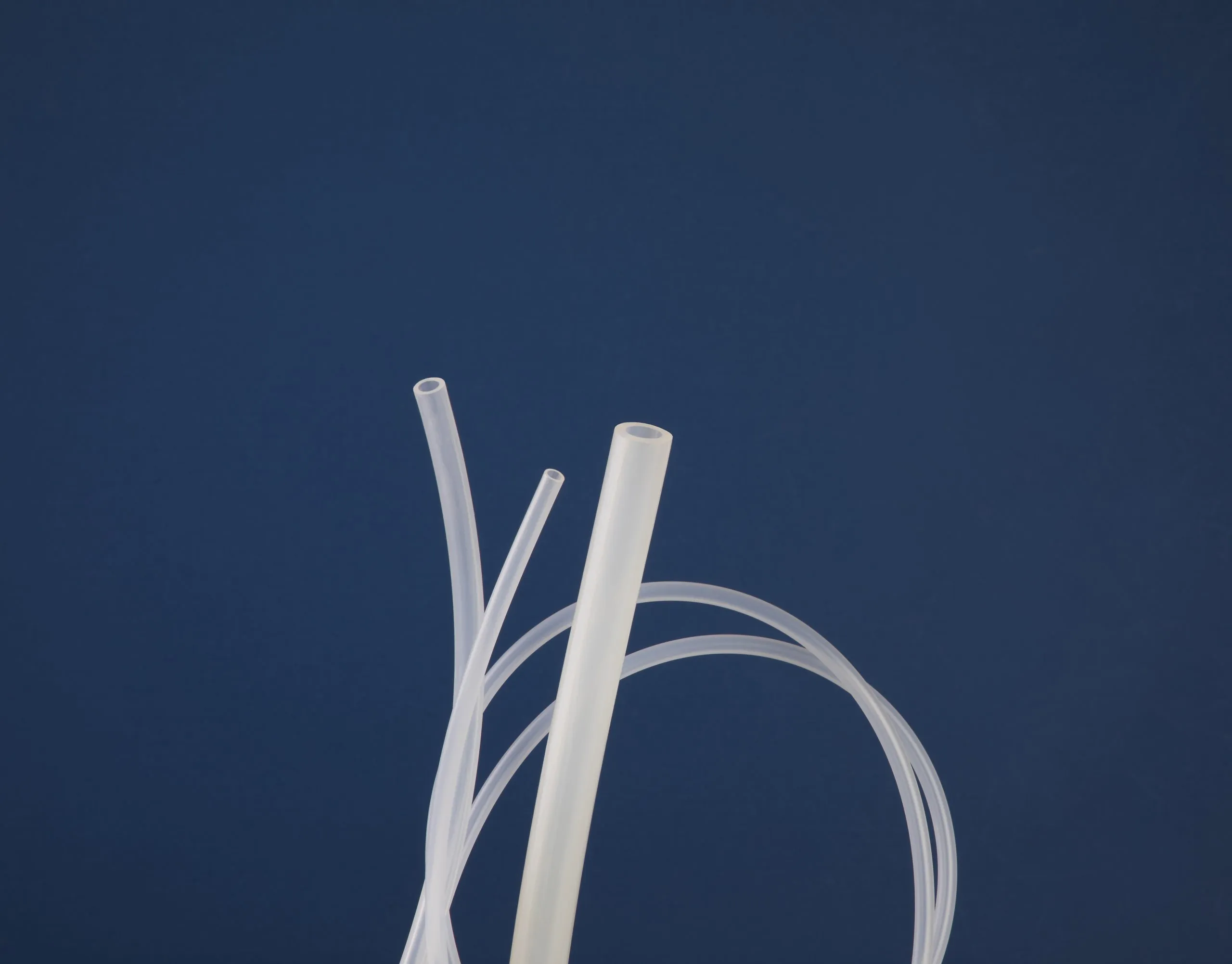

Fluoropolymer, Nylon, Polyethylene (PE), Polyethylene (PE)-lined Ethylene Vinyl Acetate (EVA), Polypropylene (PP), Polyurethane (PU), Polyvinylchloride (PVC), Latex, Silicone, Thermoplastic Elastomer (TPE), Thermoplastic Rubber (TPR), Viton™

Back to Tubing & Hose

Valve Diaphragms

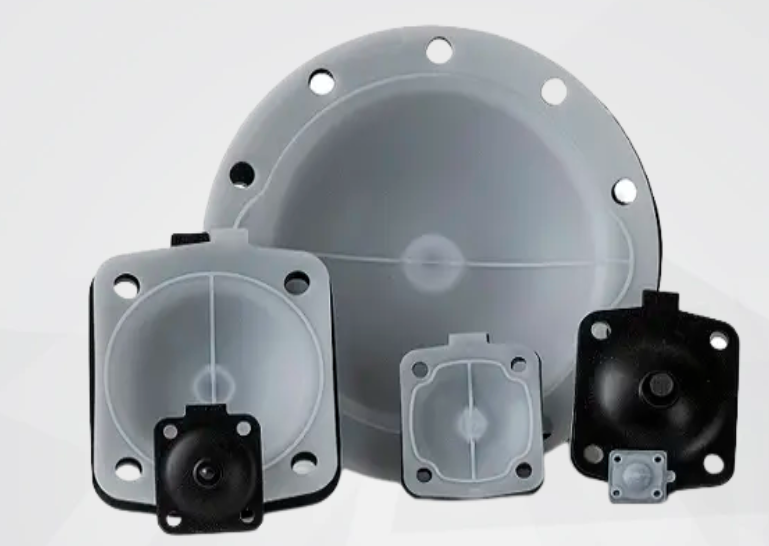

Weir-style replacement valve diaphragms

Primary material options:  EPDM and EPDM- TFM™ (modified PTFE) backed elastomers
USP Class VI certified materials, FDA CFR Title 21: 177.2600 and 177.1550
Independently verified for 500+ steam cycles and over 100,000 valve cycles
Full batch traceability of component parts.

Product Specifications

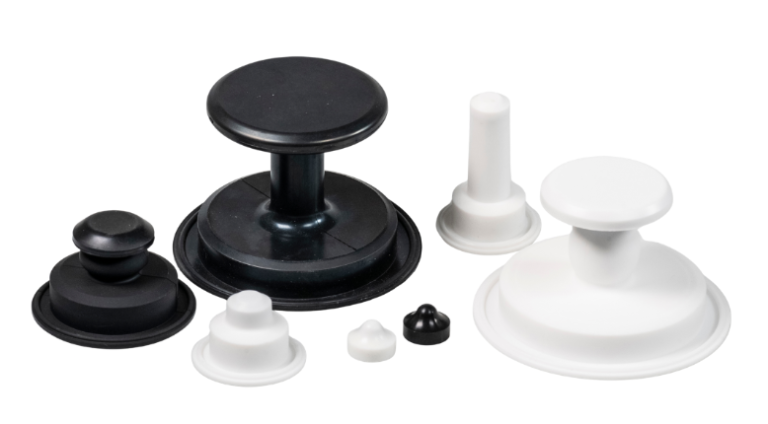

Radial-style replacement valve diaphragms

Material options:  Peroxide-cured EPDM and Platinum-cured silicone
FDA and USP Class VI compliant
Elastomers certified to FDA 21 CFR 177.2600, USP Class VI, ISO 10993 with documentation.

Product Specifications
