Flow Meters and Sensors
Coriolis Mass Flow Meters
Ultrasonic Non-invasive Flow Meters
Coriolis Flow Meters and Sensors

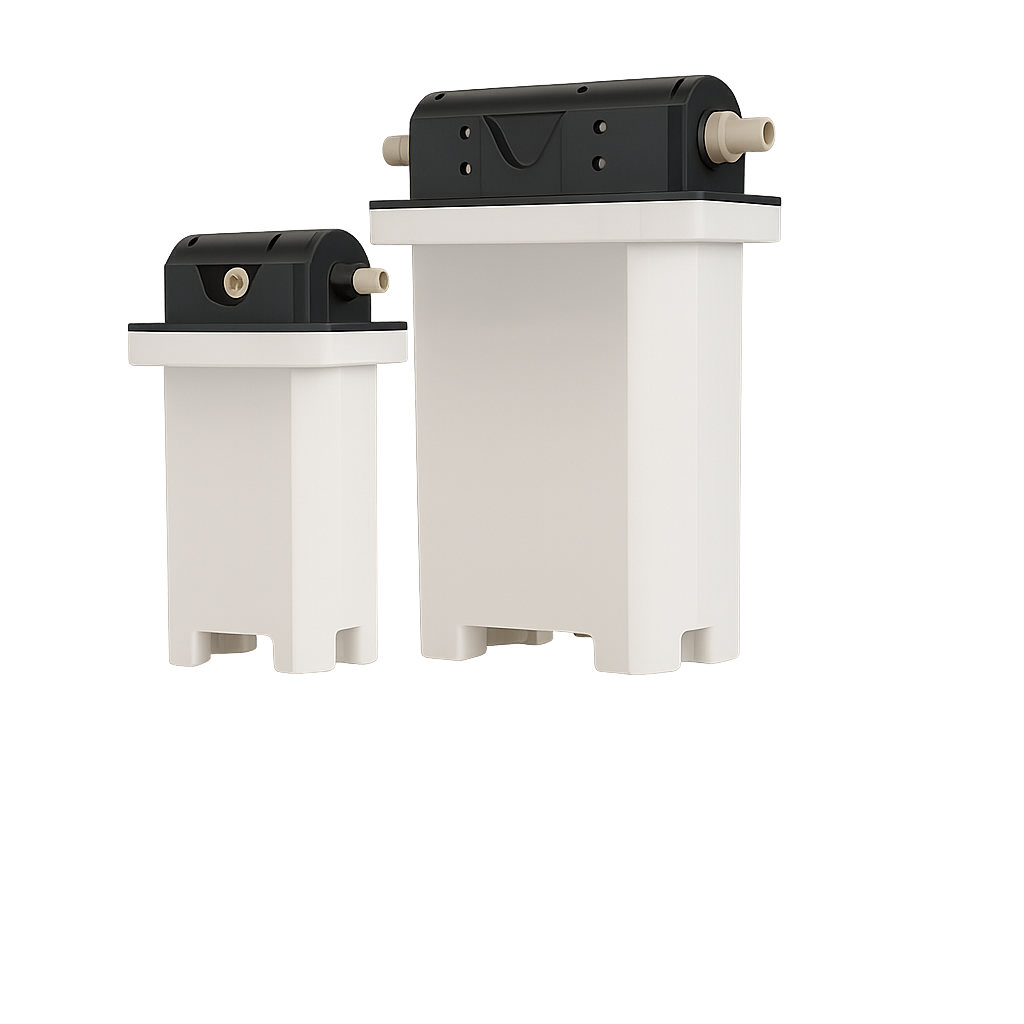

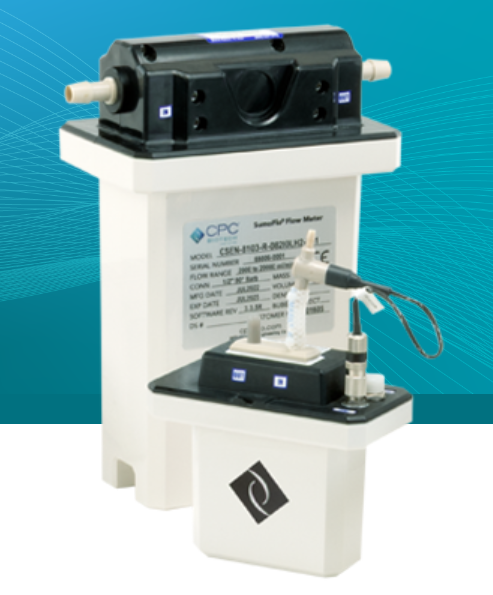

SumoFlo® Single-Use Coriolis Mass Flow Meters
Patented Coriolis technology offering ±1% of reading accuracy independent of fluid properties, no recalibration for different fluids.
Insensitive to viscosity and flow profile disturbances – coping with froth or entrained bubbles.
Unreinforced PEEK (Polyether ether ketone) product contact surfaces.
Meets USP Class VI, USP 661, and USP 788 standards.
Gamma-sterilizable.
Available in a disposable, drop-in form for single-use biopharmaceutical applications such as chromatography, cell culture, tangential flow filtration, and more.
Coriolis Mass Flow Meters and Sensors
Product Specifications – Sumoflo® Single-use Coriolis Mass Flow Meters

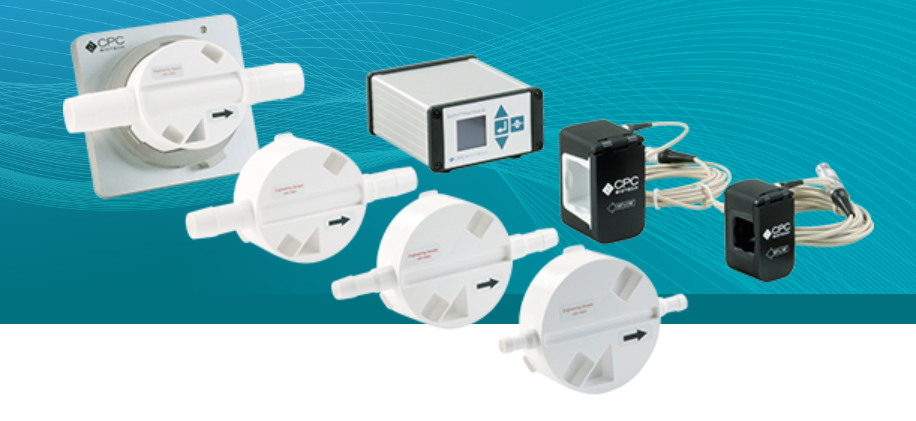

Clamp-On and In-Line Ultrasonic Flow Meters

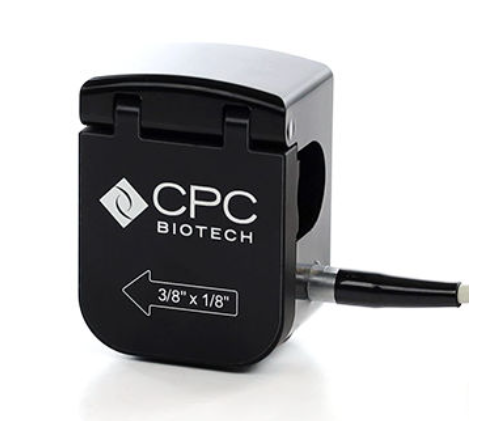

BioPro™ Ultrasonic Clamp-On Non-Contact Flow Meters
Quick and simple attachment to tubing systems with 16 different tube sizes accomodated.
Non-invasive.
Ultrasonic transit time method
Accuracy ±2% of reading
Ideal for handling shear-sensitive organisms or biomolecules.

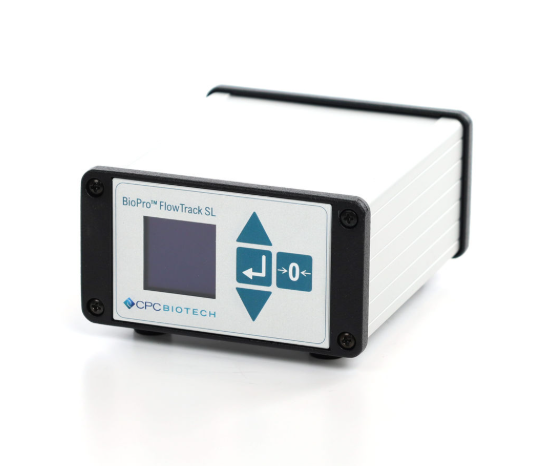

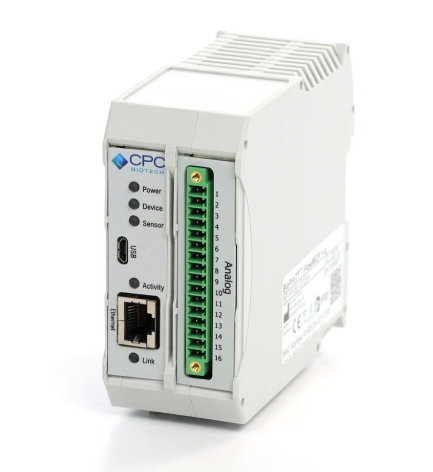

Combine with the benchtop integrated display BioPro FlowTrack SL or the multi-channel platform BioPro FlowMCP for laboratory or production use.

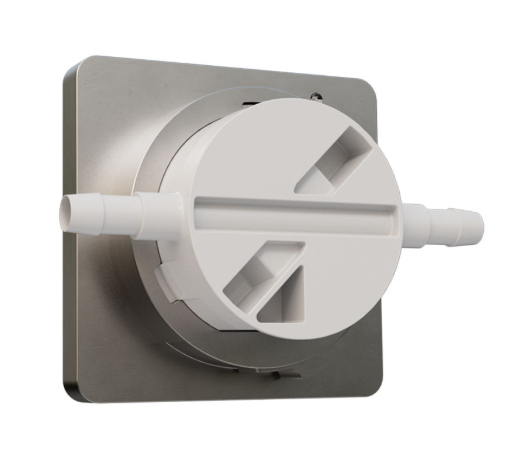

BioPro™ FlowSU Single-Use In-Line Ultrasonic Flow Meters
Reusable transmitter with a disposable flow sensor in five size options (1/4″, 3/8″, 1/2″, 3/4″, 1″) for integration into single-use tubing assemblies.
Obstruction-free flowpath.
Pressure up to 5.1 barg.
2% accuracy without individual calibration.
USP class VI material (polycarbonate) and gamma-stable up to 50 kGy.
Manufactured in an ISO 13485 environment and packaged under ISO 7 clean room conditions.
Flow measurement and bubble detection in one sensor.
Stainless steel panel mount transmitter.
CE and UL certified.
Integrated electronics and Status LED.
PoE with no cables at the front.
ModBus TCP Interface equal to the BioPro FlowMCP for OEM application.
Pulsation Dampeners

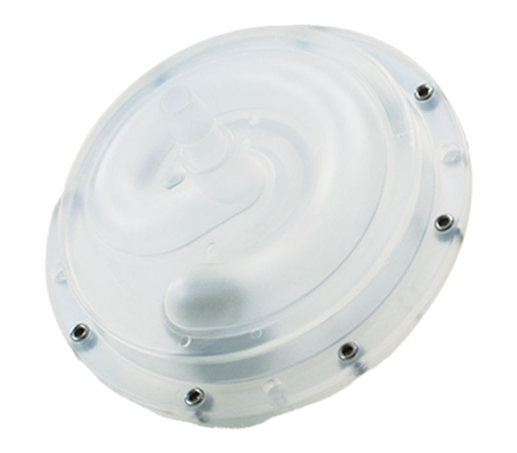

DMP-7000 Single-use Pulsation Dampeners
Positive displacement pumps, such as diaphragm and peristaltic pumps, produce pulsations in fluid. These pulsations can negatively impact single-use pharmaceutical and bioprocessing production processes such as tangential flow filtration and chromatography, which necessitate tightly controlled flow rates and line pressures. Reducing pulsation also improves filling, fluid transfer and depth filtration operations.
Up to 95% reduction in peak-to-peak flow pulsation.
Wetted fluid path made of Polyurethane and PEEK that meets USP Class VI, USP 661.2, and USP 788 requirements.
Gamma-stable to 40 kGy.
Available for line sizes from 1/8” to 1” ID, with hose barb or triclamp fluid connections.
Flow Control Valves

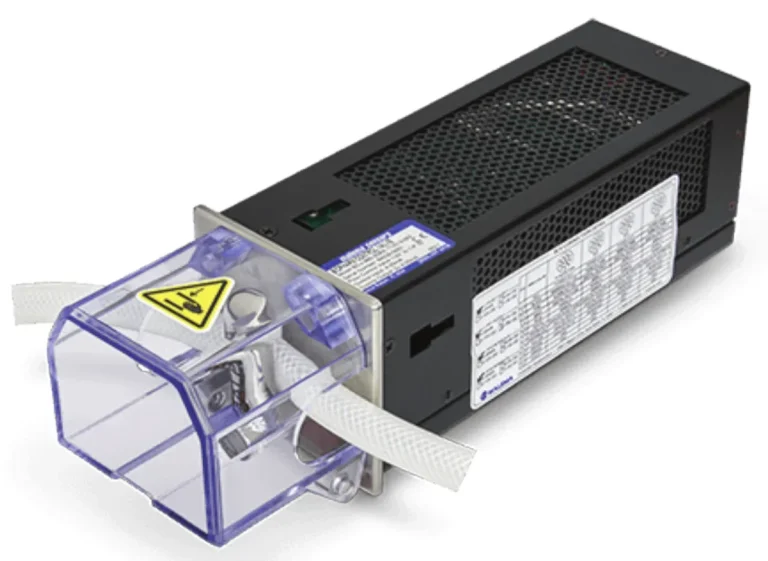

BCV-980 Compact Flow Control Valve
High-performance, intelligent and compact pinch control valve for precise flow or pressure control.
Rapid control in seconds in critical bioprocessing applications such as media preparation and tangential flow filtration.
Compatible with 1/8” – 1” ID flexible tube, braided or un-braided.
4-60°C Temperature range
6 barg maximum pressure
Automatic and remote modes
Proprietary integral PID control algorithms
Up to four analogue inputs, multiple analog outputs, multiple alarm outputs, and Addressable Sensor Network (ASN) over RS-485 and the GUI interface.
Repeatable performance.
Suitable for panel mount with non-magnetic 316L stainless steel face for standard ¼ DIN panel cutout (90mm X 90 mm)
Quattroflow® Single- and Multi-Use 4-Piston Diaphragm Pumps
QL Series Multi-Use Lobe Pumps
Pumps

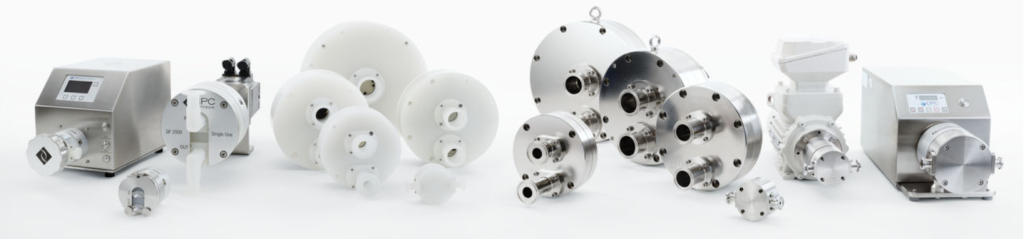

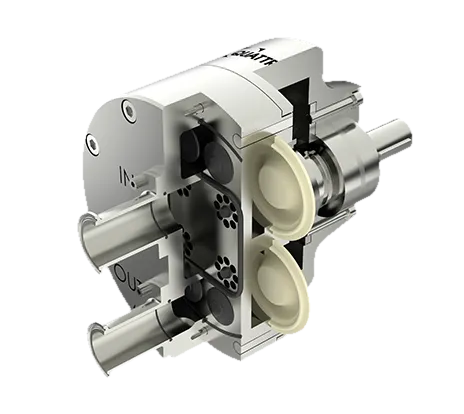

Quattroflow® Pumps
Quaternary diaphragm pumps in both single-use and multiple use formats.
Positive displacement with pressure up to 6 barg.
Scaleability from 1ml/min up to 16m³/h.
Minimal shear, pulsation and particulate generation with gentle product handling
Linear flow characteristics with high turndown ratios
Full CIP/SIP compatibility for aseptic processes.
Self-priming with high viscosity range.
Seal-less technology. No shaft seals or wetted rotating parts.
Service kits ex-stock NZ.

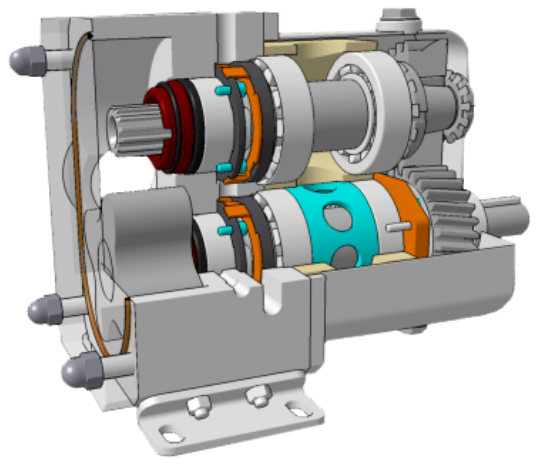

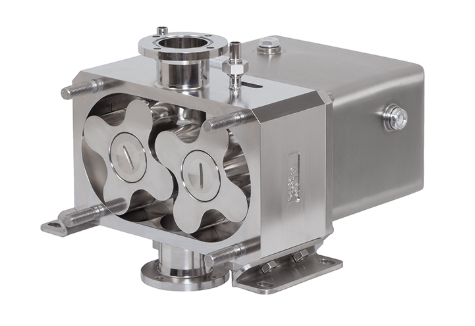

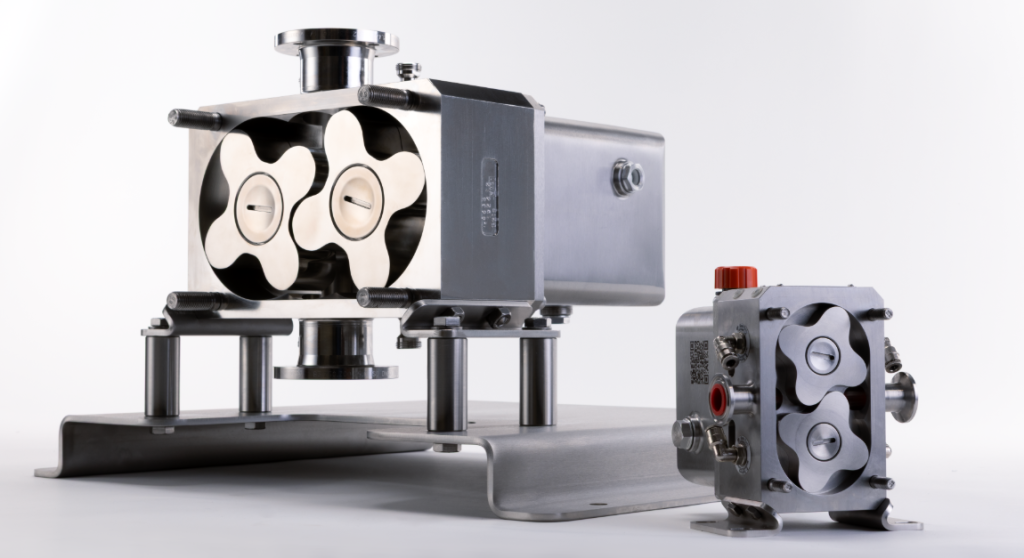

QL Series – Lobe Pumps
Models with maximum flow rates from 8 to 46 m3/hr (24.3 to 100 m3/hr on CIP)
Pressures to 10 barg.
Gentle product handling in critical applications.
Sterility by design with full CIP/SIP compatibility for aseptic processes.
Regulatory confidence built in, using FDA- and biopharma grade seals.
Engineered for endurance, delivering long service life with minimal maintenance.
Designed to adapt, with customisable configurations and automation-ready integration.
Simplified maintenance with front-loaded seal design.
Interchangeable single or double mechanical seal layout.
Application-specific lobe design and selection.
